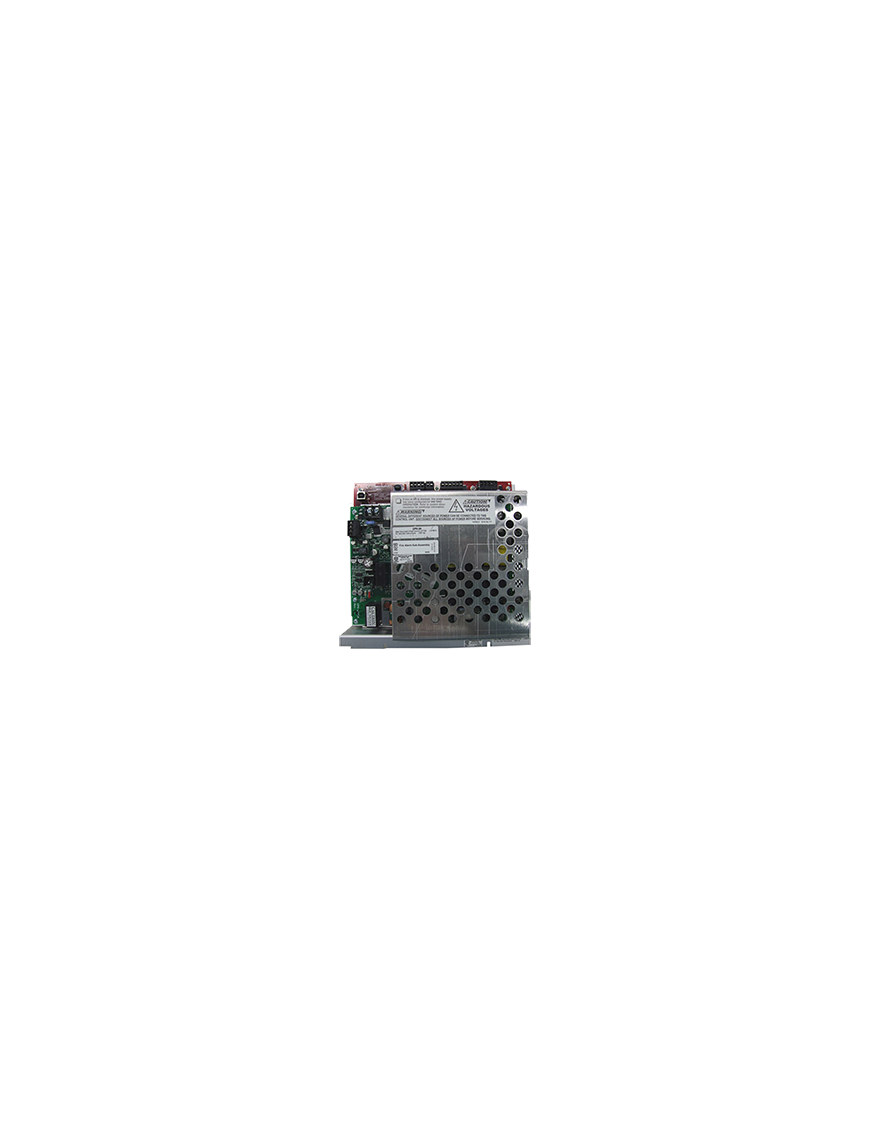

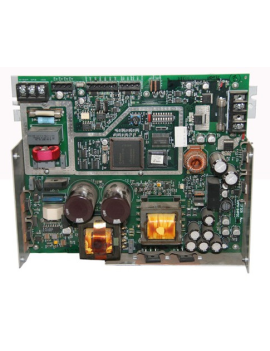

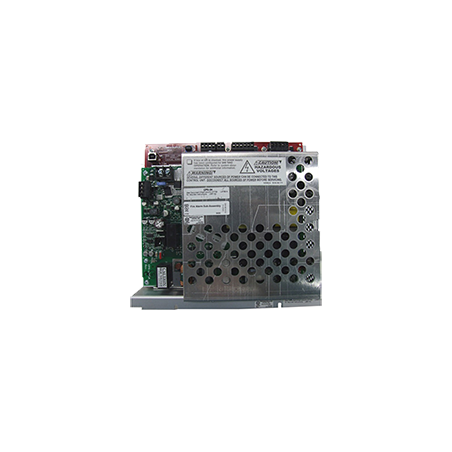

HONEYWELL AMPS-24E

HONEYWELL AMPS-24E Power Supply

NOTIFIER’s AMPS-24 is an addressable power supply and battery charger with up to three 24 VDC outputs. It operates in either FlashScan® or CLIP (Classic Loop Interface Protocol) mode with the NFS-3030/NFS2-3030 Fire Alarm Control Panel (FACP). It can also be used as the primary power supply for the NCA-2 Network Control Annunciator.

Features & Benefits:

• Addressable by NFS-3030/NFS2-3030 FACP.
• Selectable charging current charges 7 AH to 200 AH batteries.
• Isolated Signaling Line Circuit (SLC) interface.
• Trouble bus input for use with normally-open dry contacts or open-collector circuit.
• USB Type B connector for programming installation parameters.
• Brownout detection.
• Battery/battery charger supervision.
• Secondary Power Auxiliary Outputs: 24V @ 0.5A and 5V @ 0.15A.
• AC loss detection and AC loss delay reporting.
• Mounts in a CAB-4 Series enclosure, EQ Cabinet Series enclosure, BB-25, BB-100, or BB-200 Battery Backbox.
