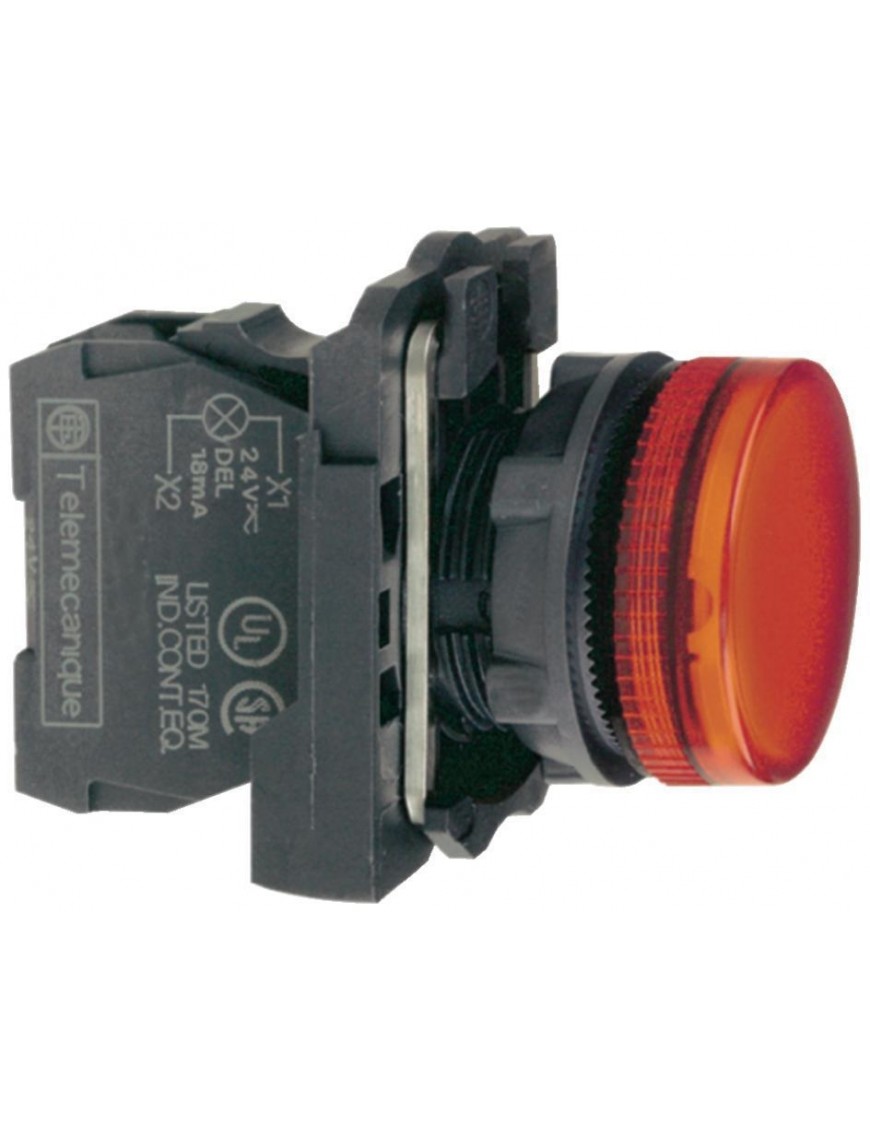

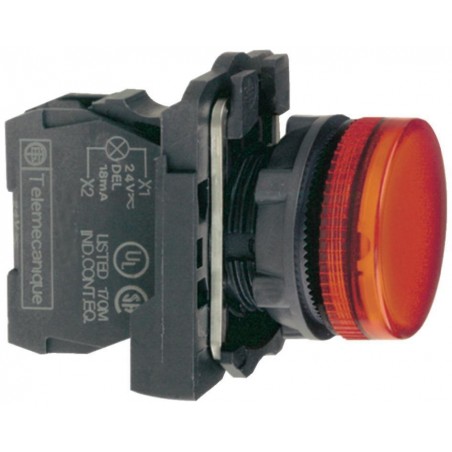

SCHNEIDER ELECTRIC XB5AVM4

SCHNEIDER ELECTRIC XB5AVM4  PILOT LIGHT, LED RED 240VAC PLASTIC

• Range of product Harmony XB5
• Product or component
• type
• Complete pilot light
• Device short name XB5
• Bezel material Plastic
• Fixing collar material Plastic
• Mounting diameter 22 mm
• Sale per indivisible
• quantity
• 1
• Standards CSA C22-2 No 14
• EN/IEC 60947-1
• EN/IEC 60947-5-1
• EN/IEC 60947-5-4
• EN/IEC 60947-5-5
• JIS C 4520
• UL 508
• Shape of signaling unit
• head
• Round
• Cap/Operator or lens
• colour
• Red
• Operator additional information
• With plain lens
• Connections - terminals Screw clamp terminals 1 x 0.22...2 x 2.5 mm² without
• cable end EN/IEC 60947-1
• Screw clamp terminals <= 2 x 1.5 mm² with cable
• end EN/IEC 60947-1
• Light source Protected LED
• Light source colour Red
• [Us] rated supply voltage
• 230...240 V AC 50/60 Hz
