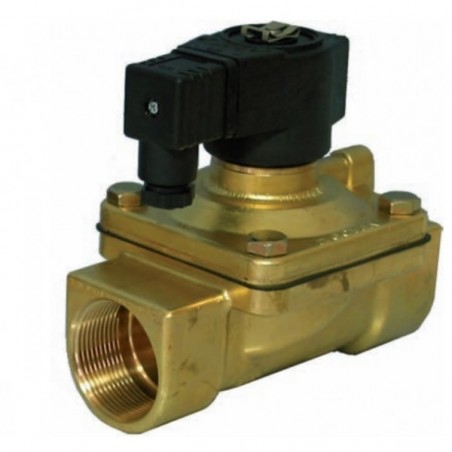

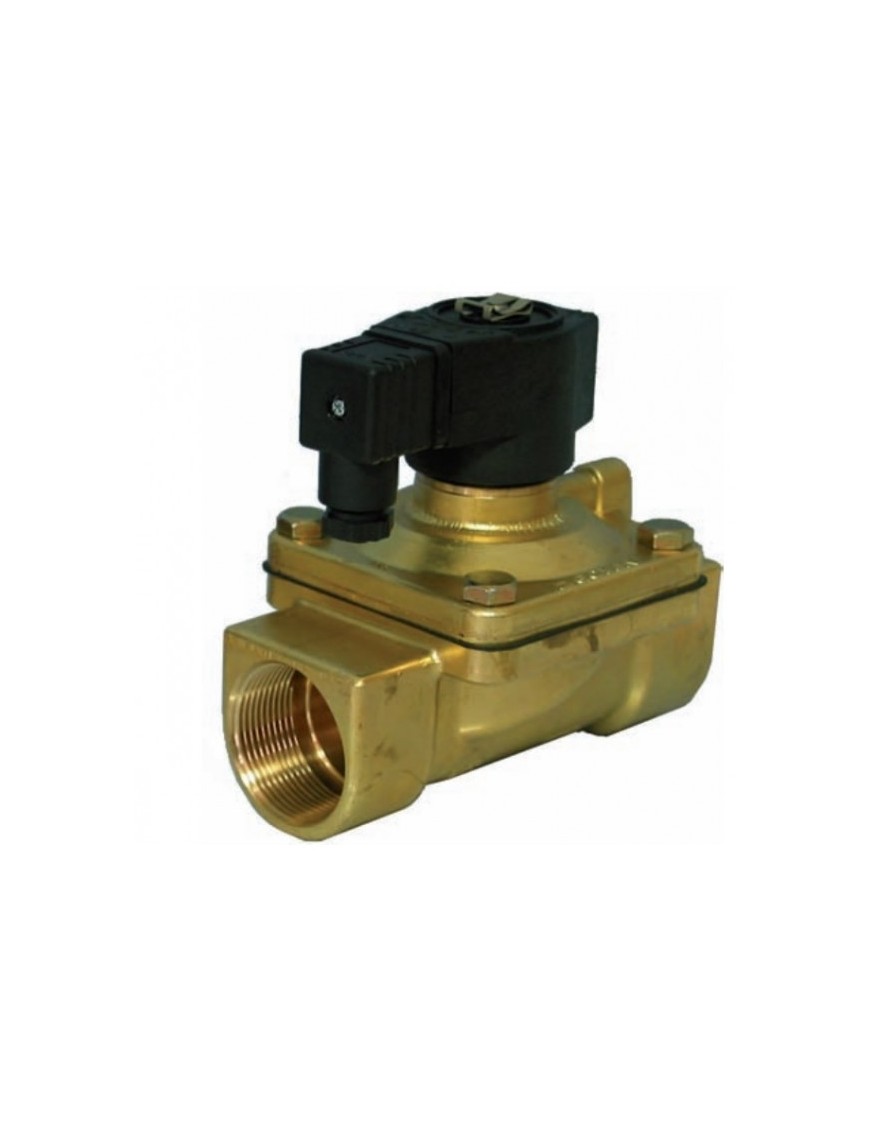

GOYEN 40BW2-ENBNA-6081

GOYEN 40BW2-ENBNA-6081

Goyen's BW 2 way normally closed series are forged bodied internal pilot operated general purpose fluid control valves. This series's range features a floating primary diaphragm.

• Valve Size : 1-1/2" pipe thread.
• Operating Pressure : 20 to 1000 kPA , 3 to 150 psi
• Minimum Pressure Differential : 20 kPa (3 psi)
• Pipe Size (mm,inch) : 40, 1-1/2
• Orfice Size (mm,inch) : 38.1, 1.50
• Flow Factor (Cv,Kv) : 24.0, 20.64
