ALLEN BRADLEY 1746-NI4

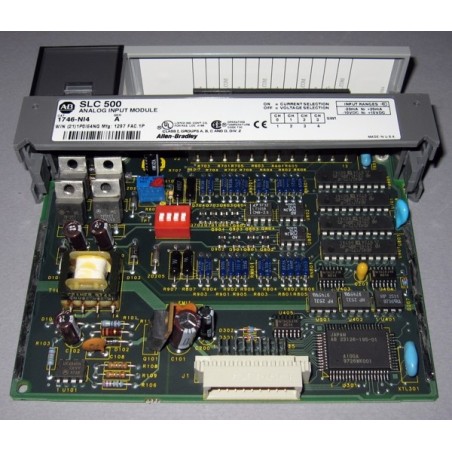

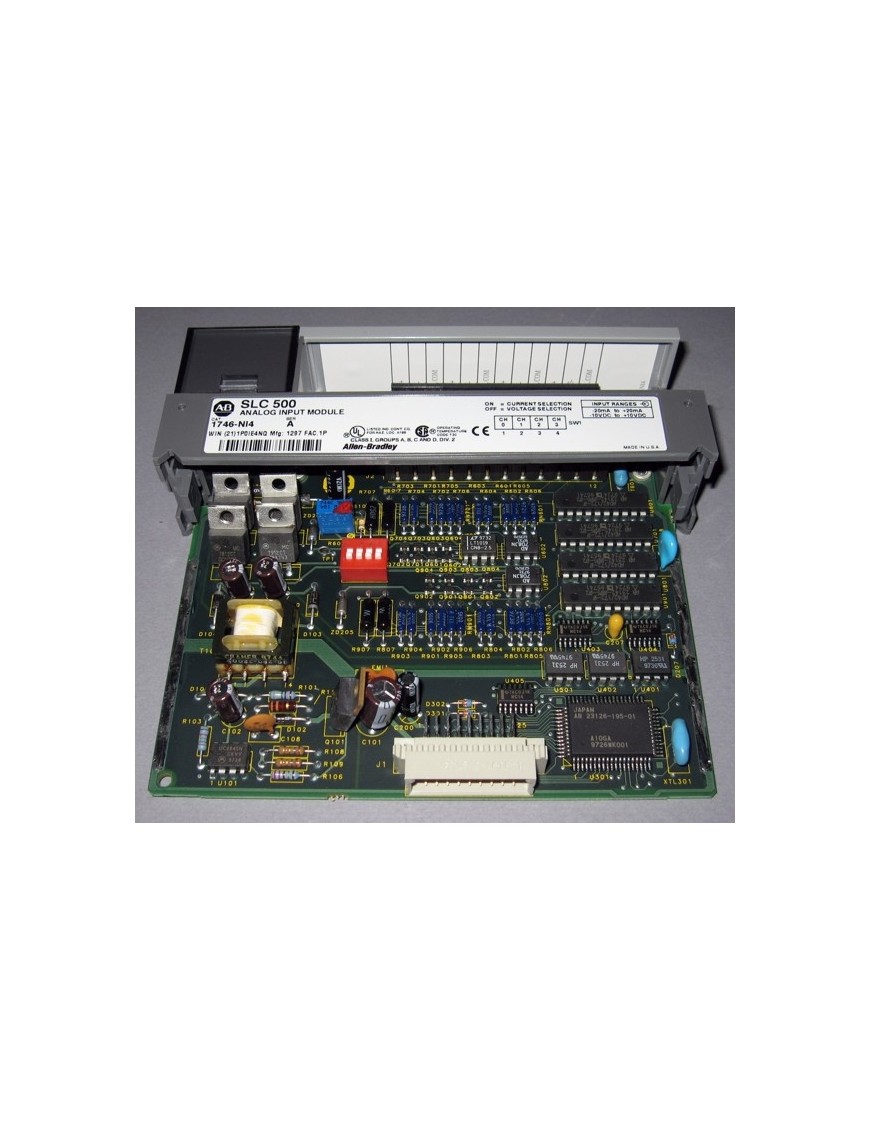

Allen Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module 4 Point

Allen Bradley 1746-NI4 SLC 500 High Resolution Analog Input Module, 4 Point. Number of Inputs: 4 Analog Inputs ±10V DC or ±20 mA; Current Loop Input Range ±20 mA (nominal), ±30 mA (maximum); Current Loop Input Coding ±16,384 for ±20mA; Absolute Maximum Input Voltage ±7.5V DC or 7.5V AC RMS; Nominal Input Impedance 250O; Voltage Input Range ±10V DC -1 LSB; Voltage Input Impedance: 1MO; Overvoltage Protection (IN+ to -IN): 220V DC or AC RMS continuously; Backplane Current: 25mA  5V, 85mA 24V; Resolution (bits), Max: 16. Allen Bradley 1746-NI4 Analog Input module contains 4 analog input channels that are user selectable per channel for voltage or current
