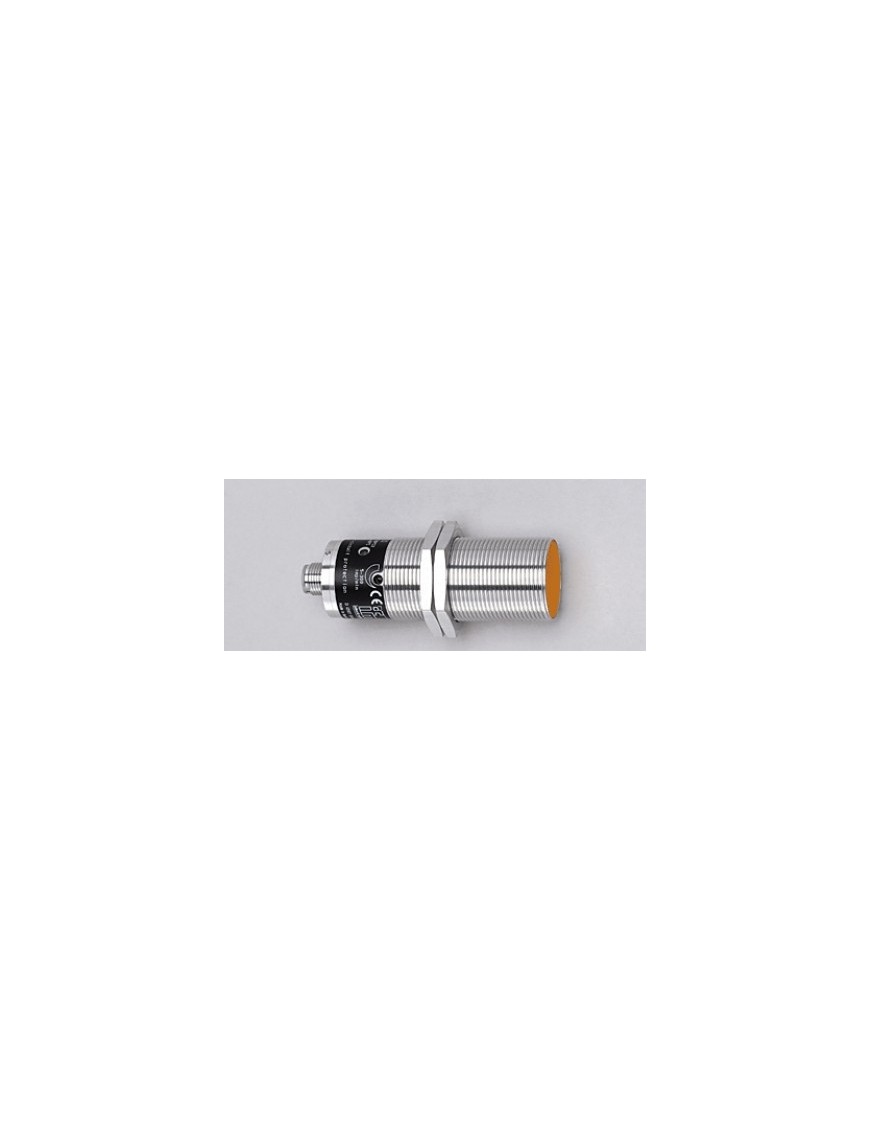

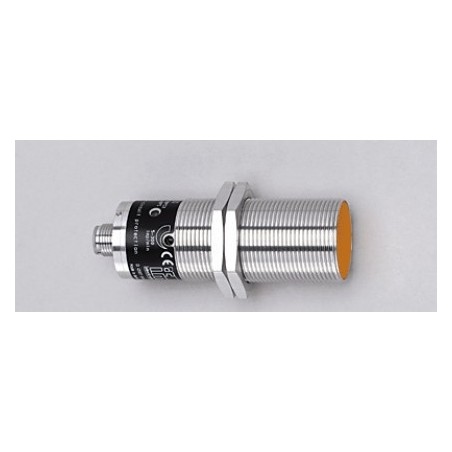

IFM IIM210 SENSOR INDUCTIVO PROXIMIDAD
IFM IIM210 SENSOR INDUCTIVO PROXIMIDAD
| Operating voltage: | 10...60 V DC |
| Electrical design: | DC PNP |
| Output function: | normally open |
| Current rating: | 200 mA |
| Length: | 81 mm |
| Mounting: | flush mountable |
| Sensing range: | 12 mm |
| Switching frequency: | 100 Hz |
| Connection: | PUR cable / 6 m; 3 x 0.5 mm² |
| Housing materials: | housing: stainless steel; active face: PBT; lock nuts: Brass |
| Ambient temperature: | -40...85 °C |
| Protection: | IP 67 / IP 69K |
| Output status indication: | LED yellow (4 x 90°) |
| Accessories (to be ordered separately): | Mounting accessories |
IIM210
Ficha de datos
- Modelo
- IIM210
- Marca
- IFM
