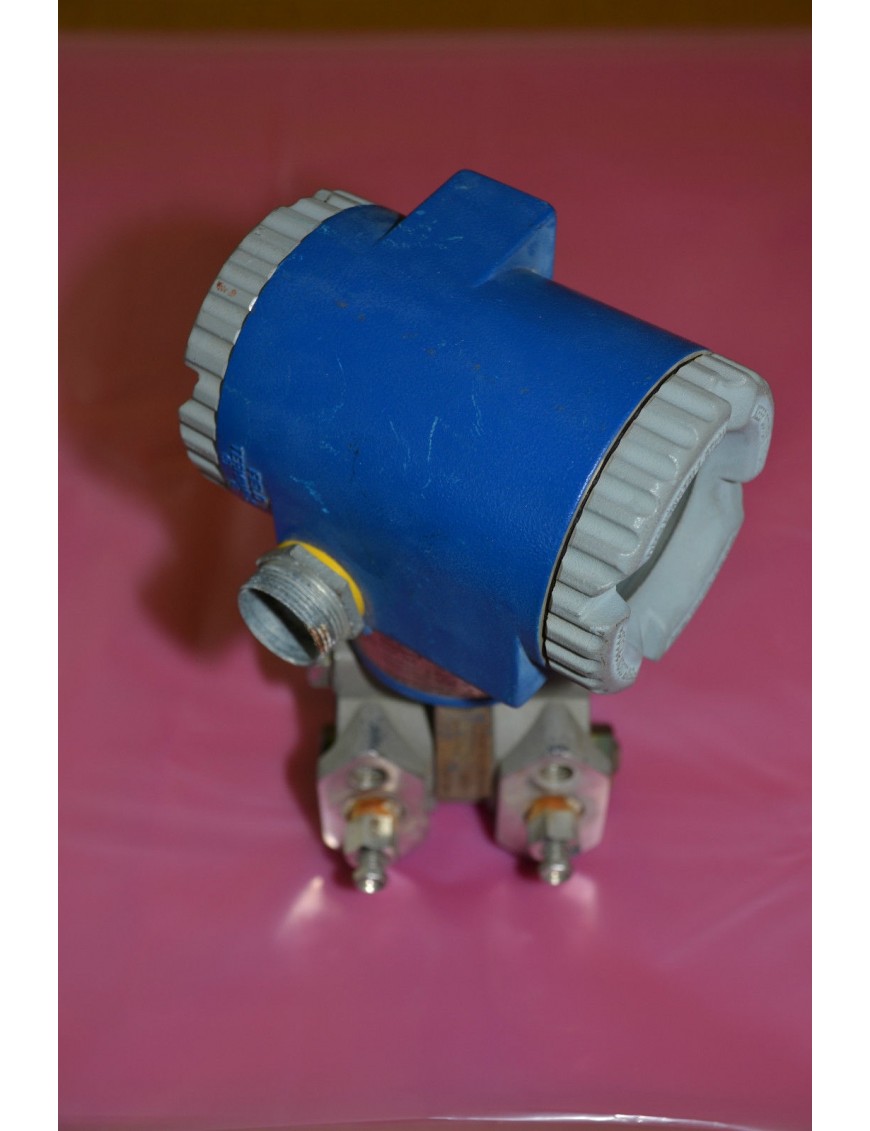

FOXBORO IDP10-A22A21F

TRANSMISOR (TRANSMITTER), CELL INTEL ELEC D/P, FOXBORO CO. MODEL IDP10-A22A21F

 MEASURES THE DIFFERENCE BETWEEN TWO PRESSURES AN TRANSMITS A PROPORTIONAL OR SQUARE ROOT (FLOW), ELECTRICAL SIGNAL A: ELECTRONICS VERSION AND OUTPUT SIGNAL 4 TO 20MA. INCLUDES EXPLOSSION PROOF RATING AND LCD INDICATOR WITH PUSHBUTTONS FOR CALIBRATION, CONFIGURATION, STANDARD PRESSURE UNITS, AND REAR RANGING /EXCLUDE CUSTOM LABELS AND INTRINSIC SAFETY RATING) 22: STRUCTURE CODE 316SS PROCESS COVER, 316L SS SENSOR SILICONE FILL FLUID, A:SPAN LIMITS 0.12 SPAN AND 7.5KPA. 0.5 AND 75MBAR. 2: PROCESS CONNCETOR (MATI SAME AS PROCESS COVER) 1/2 NPT. 1:CONDUIT CONNECTION & HOUSING MATERIAL 1/2 NPT CONDUIT CONNECTION BOTH SIDES ALUMINUM HOUSING, F:ELECTRICAL SAFE FM EXPLOSION PROOF FOR CLASS I, DIVISION 1, GROUPS B, C & D, DUST IGNITION PROOF FOR CLASS II, DIVISION 1, GROUPS E, F, G CLASS III, DIVISION 1, ALSO NON INCEDIVE FOR CLASS I, DIVSION 2, GROUPS F,G, CLASS III, DIVISION 2, OPTIONAL
