DWYER VBS-2

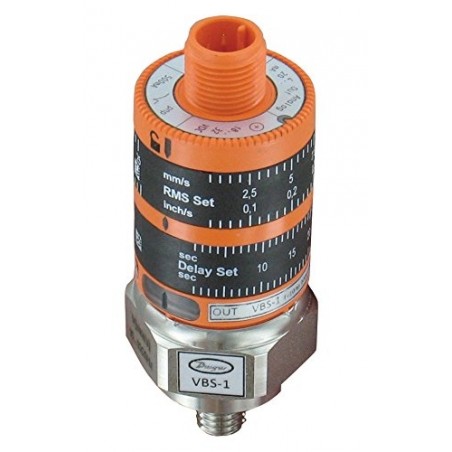

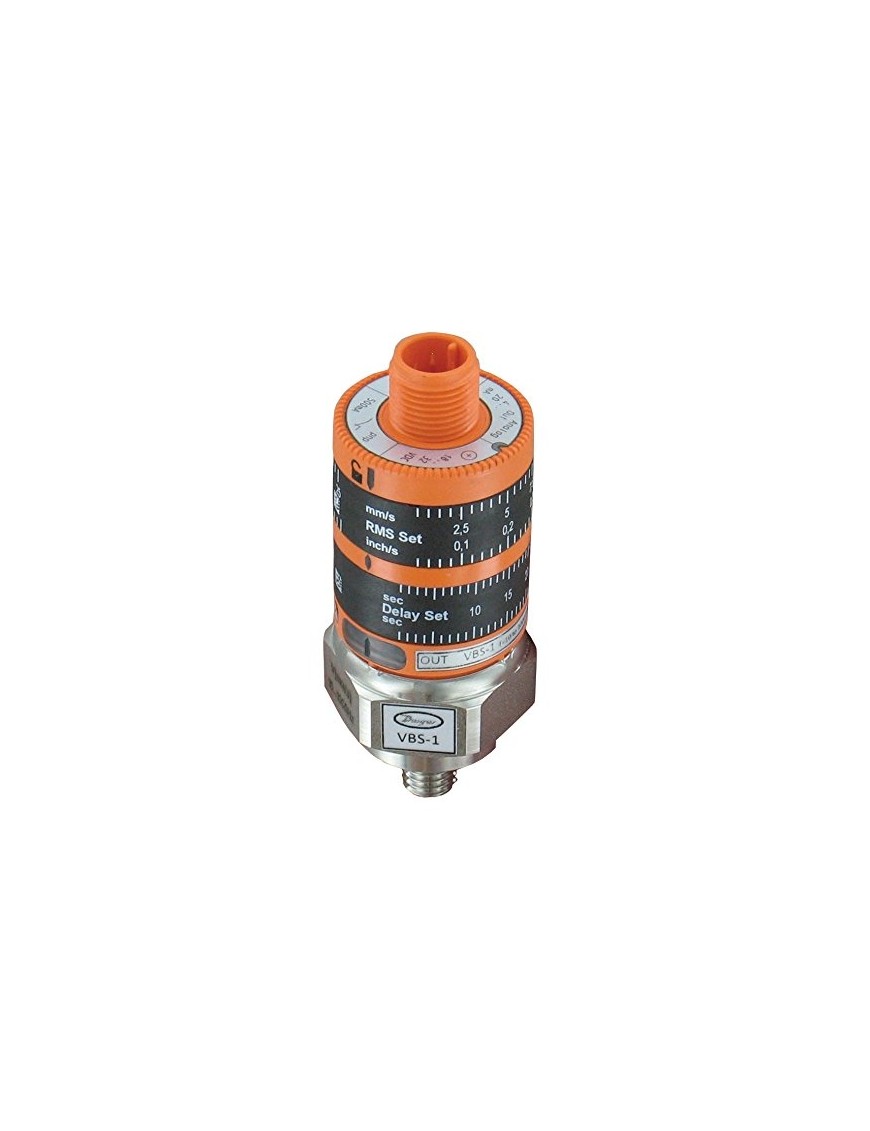

DWYER VBS-2 SERIES VBS VIBRATION SWITCH

• Housing Material: PBT, PC, FPM, and 316 SS.
• Temperature Limit: -22 to 221°F (-30 to 105°C).
• Accuracy: < ±3%.
• Measuring Range: 0 to 50 mm/s.
• Connections: M12 connector.
• Enclosure Rating: NEMA 6 (IP67).
• Electrical Rating: 18 to 32 VDC.
• Mounting Orientation: All.
• Nonlinearity: < ±0.25% of span.
• Switch Output Range: VBS-1: 0 to 25 mm/s Vrms;
• VBS-2: 0 to 50 mm/s Vrms.
• Analog Output Range: 10 to 1000 Hz.
• Output Signal: 4 to 20 mA.
• Switch Time Delay: 1 to 60 seconds.
• Switch Type: PNP normally open (500 mA max).
• Repeatability: < 0.5%.
• Weight: 0.25 lb (0.114 kg).
• Agency Approval: CE.
