PEPPERL + FUCHS SJ30-WS
Write your review
0 $
Sin impuestos

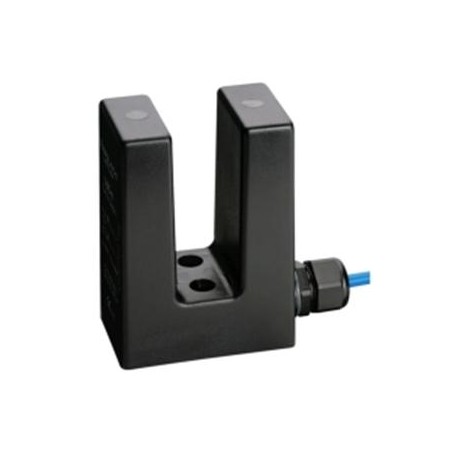

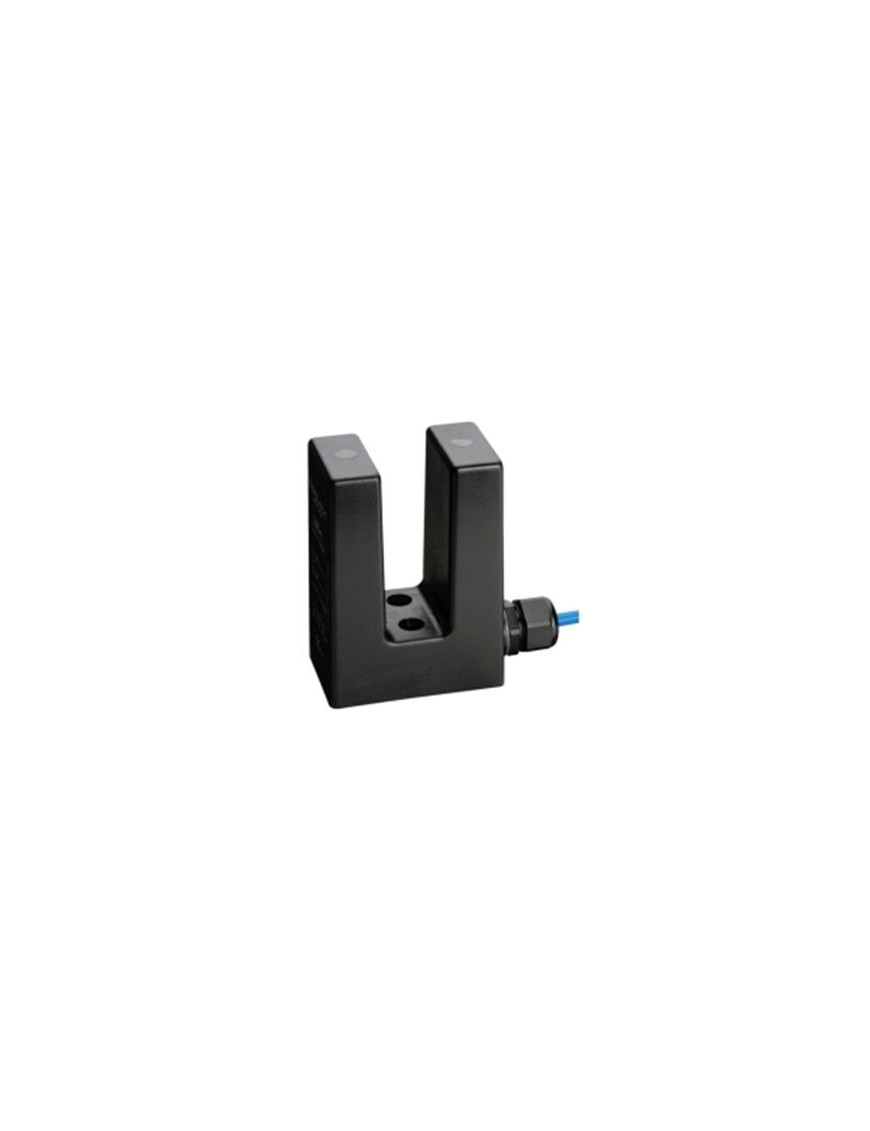

INDUCTIVE SLOT SENSOR SJ30-WS
INDUCTIVE SLOT SENSOR SJ30-WS
| General specifications | ||
|---|---|---|
| Switching element function | AC NO | |
| Slot width | 30 mm | |
| Depth of immersion (lateral) | 27 ... 31 mm | |
| Output polarity | AC | |
| Nominal ratings | ||
| Operating voltage | 20 ... 253 V AC 1) | |
| Switching frequency | 0 ... 25 Hz | |
| Voltage drop at IL | ||
| Voltage drop IL = 200 mA, switching element on | 4 ... 7 V typ. 6.5 V | |
| Momentary current (20 ms, 0.1 Hz) |
0 ... 4000 mA | |
| Operating current | 10 ... 500 mA | |
| Off-state current | 0.8 ... 2.5 mA | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | ABS | |
| Degree of protection | IP67 | |
| Mass | 450 g | |
| Note | 1) In the temperature range below 0 °C, permissible operating voltage Ub 80...253 V | |
SJ30-WS
Ficha de datos
- Modelo
- SJ30-WS
- Marca
- PEPPERL + FUCHS
