ABB AF 26-30-00-13
Write your review
0 $
Sin impuestos

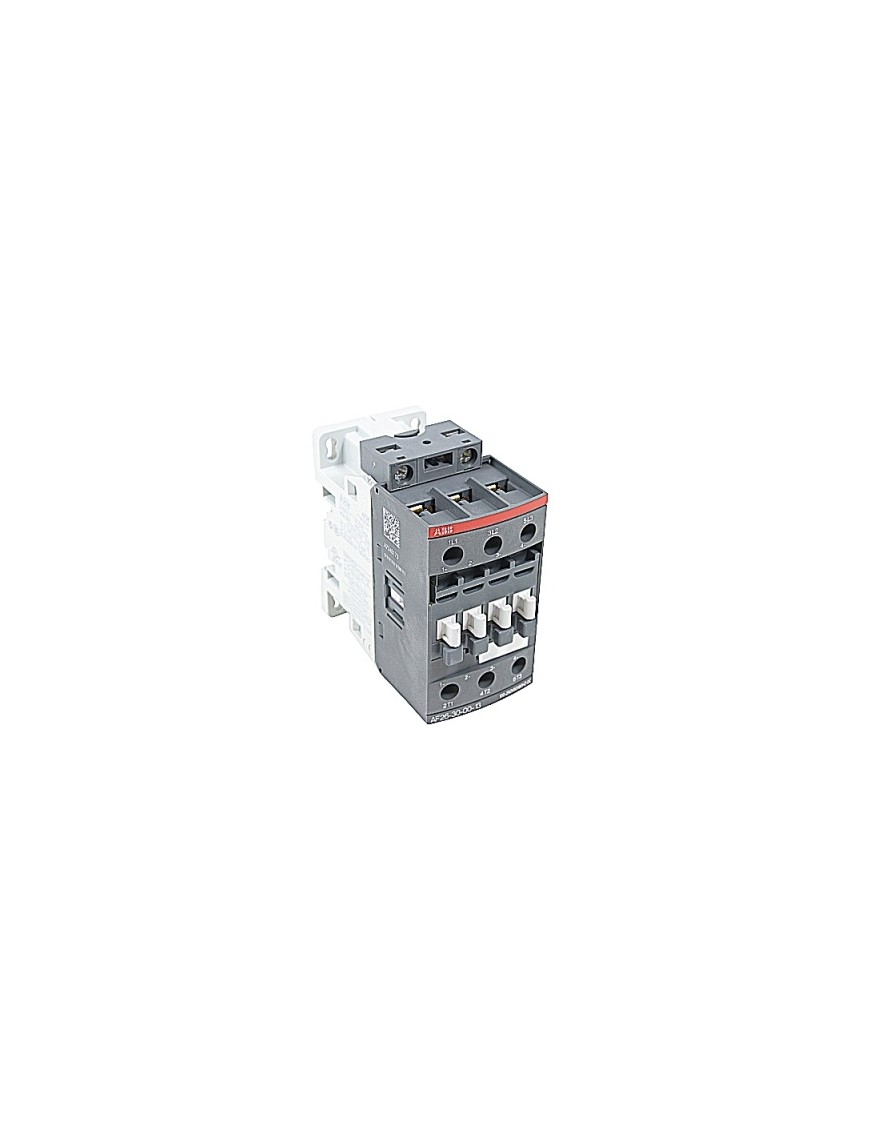

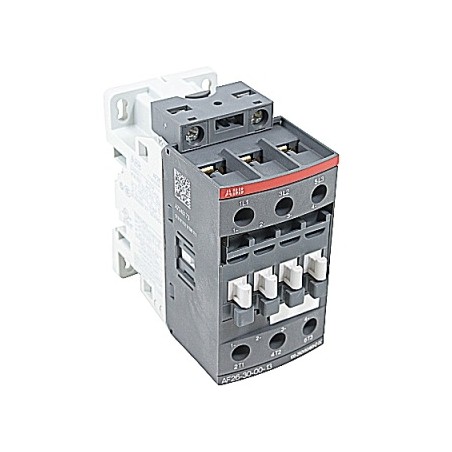

ABB AF26-30-00-13 Contactor, DIN Rail, 250 V, 45 A, 250 V, 250 V
ABB AF26-30-00-13 Contactor, DIN Rail, 250 V, 45 A, 250 V, 250 V
- Rated operational voltage of 690V for main circuit
- Rated frequency limits from 25Hz to 400Hz
- Rated operational current of 40A at 690V (AC-1), 26A at 380V/400V (AC-3)
- Maximum breaking capacity of 500A at 440V and 200A at 690V
- Rated insulation voltage of 600V according to UL/CSA standards
- IP20 degree of protection
- Ambient air temperature range from -25°C to 60°C (close to contactor fitted with thermal O/L relay)
- Control voltage of 100VAC to 250VAC at 50Hz/60Hz
- IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2, CCC, GOST and cUL approved
- Rated operational power of 11KW at 380V/400V (AC-3)
AF 26-30-00-13
Ficha de datos
- Modelo
- AF 26-30-00-13
- Marca
- ABB
