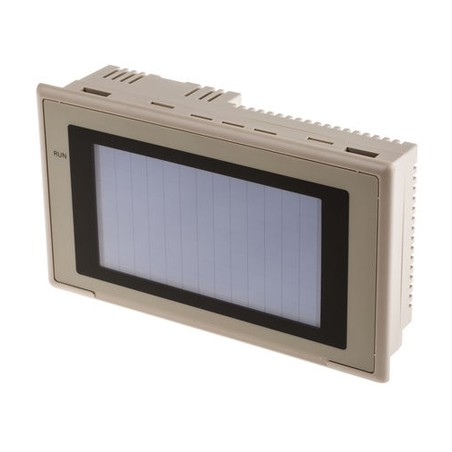

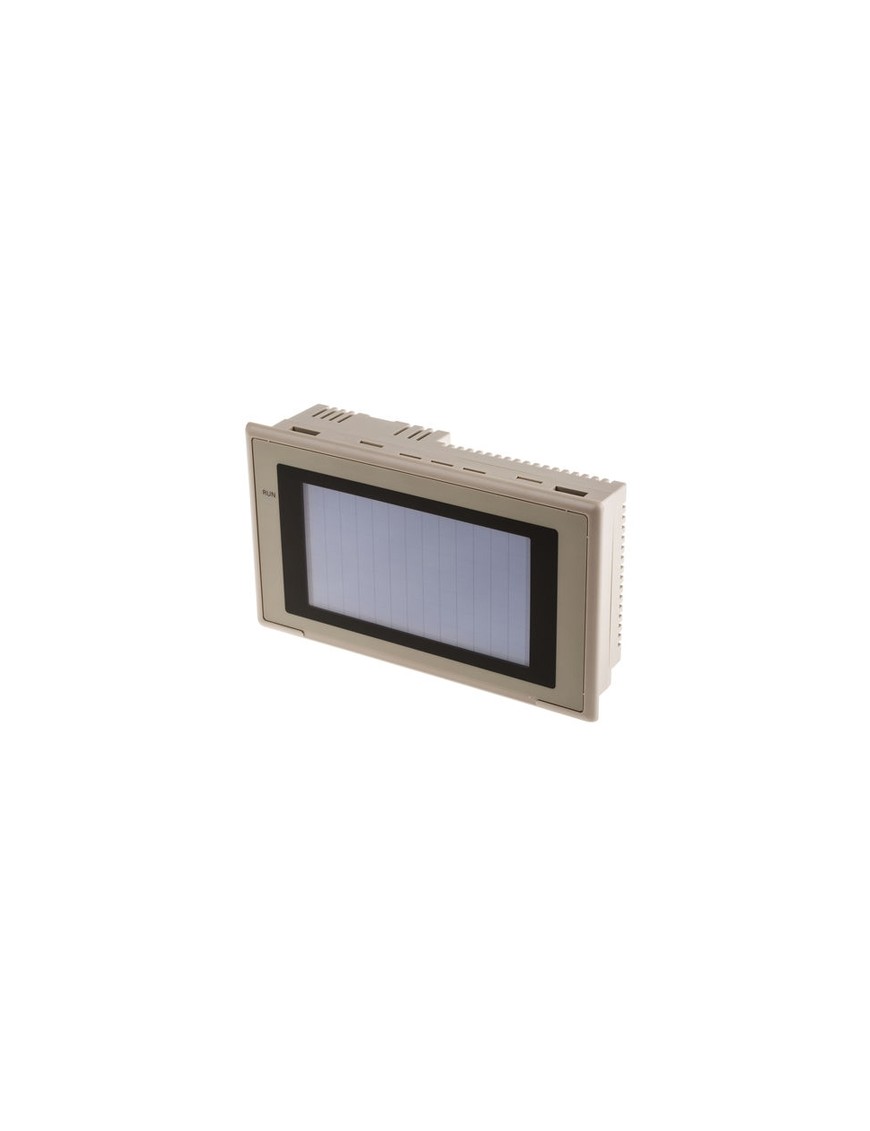

OMRON NT21-ST121-E

Power supply voltage

24 VDC 15%

Power consumption

7 W max.

Noise resistance

Conforms to IEC61000-4-4. Power supply line: 2 kV

Vibration resistance

10 to 57 Hz with 0.075-mm single amplitude,
57 to 150 Hz with 9.8 m/s² acceleration,
for a total of 60 min in X, Y, and Z directions

Shock resistance

Peak acceleration 15 G,
3 times each in X, Y, and Z directions

Ambient operating temperature

0 to 50°C (with no icing)

Storage temperature

-20 to +70°C (with no icing)

Ambient operating humidity

35% to 85% (with no condensation) (0 to 40°C)
35% to 55% (with no condensation) (40 to 50°C)

Dimensions

190 x 110 x 53.5 mm (W x H x D) (thickness inside panel: 49.0 mm)

Enclosure ratings

Front panel operating section: Equivalent to IP65F, NEMA 4.*

Weight

0.6 kg max.
