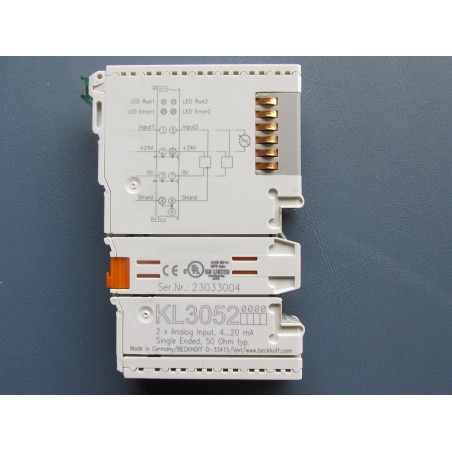

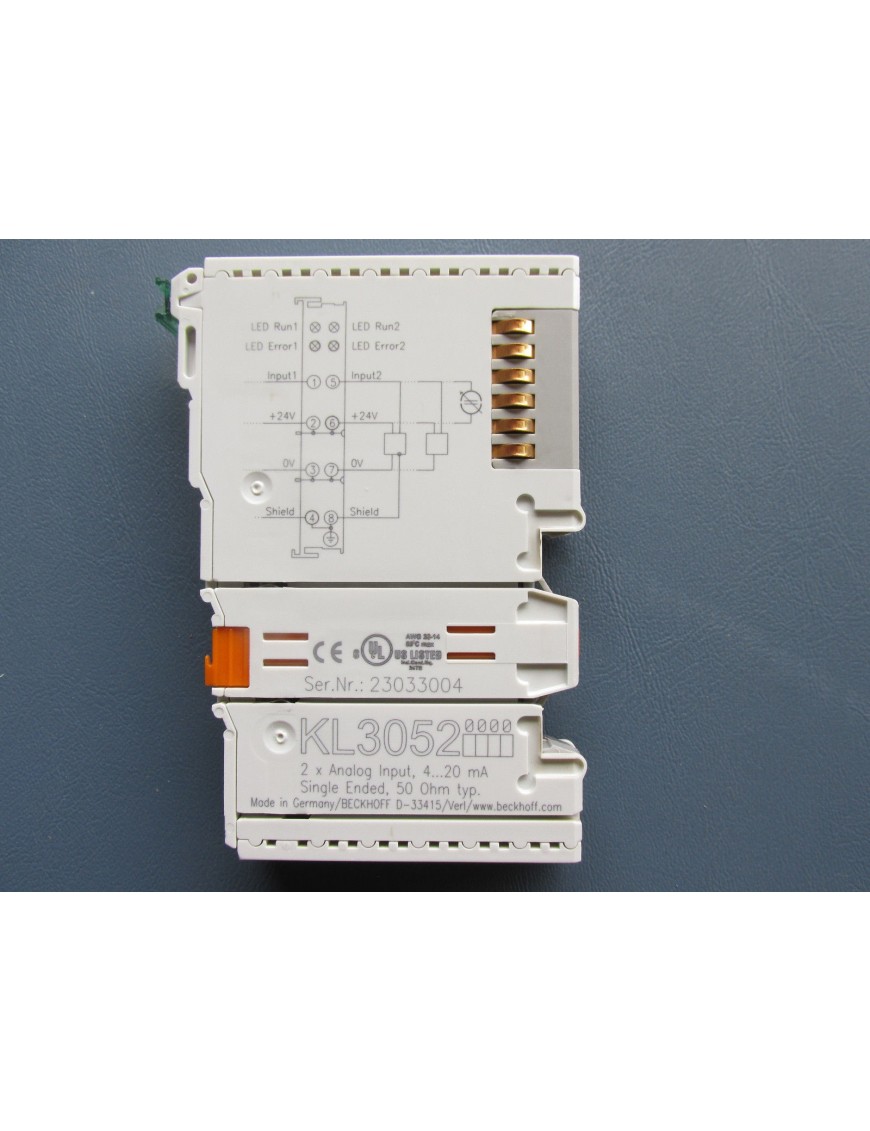

BECKHOFF KL3052

0 $
Sin impuestos

2-channel loop-powered input terminals 4…20 mA

Cantidad
Entrega 10 días hábiles
equalizer Añadir a comparar cached
favorite_border Añadir a la lista de deseos cached

2-channel loop-powered input terminals 4…20 mA

Power supply:            24 V DC via power contacts
Signal current:                        4…20 mA
Technology:                single-ended
Internal resistance:                 80 Ω + 0.7 V
Common-mode voltaje:         UCM  –
Resolution:      12 bit
Conversion time:        ~ 2 ms
Measuring error:         < ±0.3 % (relative to full scale value)
Surge voltage resistance:      35 V max.
Electrical isolation:     500 V (K-bus/signal voltage)
Current consumption power contacts:          only load
Current consumpt. K-bus:     typ. 65 mA
Bit width in the process image:          input: 2 x 16 bit data (2 x 8 bit control/status optional)
Special features         with sensor supply
Weight approx:           70 g
Operating/storage temperatura:        -25…+60 °C/-40…+85 °C
Relative humidity:      95 %, no condensation




Ficha técnica

KL3052

Ficha de datos

Modelo
KL3052
Marca
BECKHOFF
