BECKHOFF KL1809
Write your review
0 $
Sin impuestos

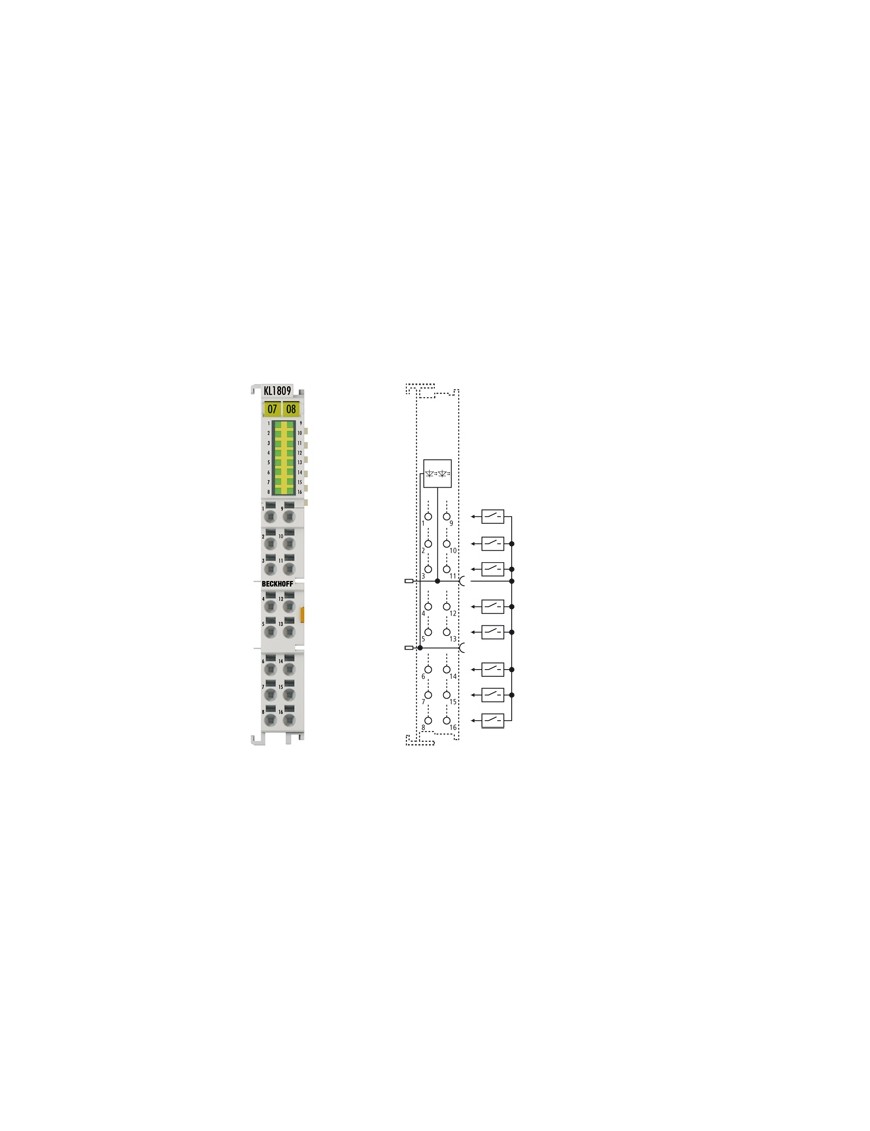

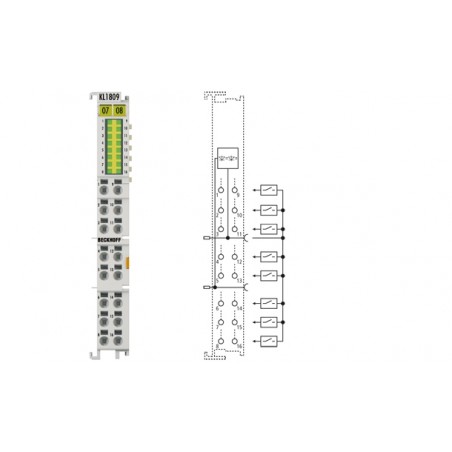

HD Bus Terminals, 16-channel digital input 24 V DC
HD Bus Terminals, 16-channel digital input 24 V DC
Technical data: KL1809 Connection technology: 1-wireSpecification: EN 61131-2, type 1/3Number of inputs: 16Nominal voltaje: 24 V DC (-15 %/+20 %)“0“ signal voltaje: -3…+5 V (EN 61131-2, type 1/3)“1“ signal voltaje: 11…30 V (EN 61131-2, type 3)Input filter: typ. 3.0 ms Input current: typ. 3 mA (EN 61131-2, type 3)Current consumpt. K-bus: typ. 20 mACurrent consumption power contacts: typ. 4 mA + loadElectrical isolation: 500 V (K-bus/field potential)Bit width in the process image: 16 inputsRated cross-section: solid wire: 0.08…1.5 mm²; stranded wire: 0.25…1.5 mm²; ferrule: 0.14…0.75 mm²Weight approx: . 60 gOperating/storage temperatura: 0…+55 °C/-25…+85 °C
KL1809
Ficha de datos
- Modelo
- KL1809
- Marca
- BECKHOFF
