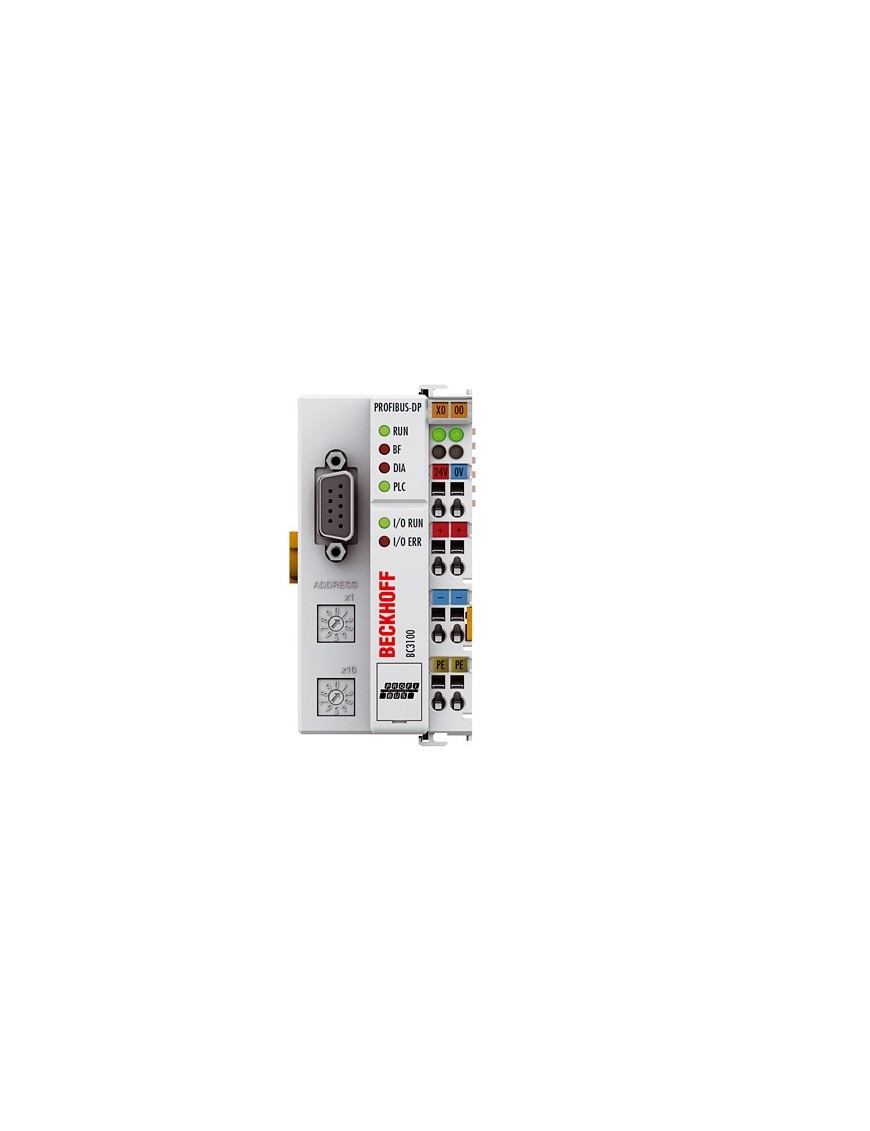

BECKHOFF BC3150
Write your review
0 $
Sin impuestos
Bus Terminal Controller for PROFIBUS
Bus Terminal Controller for PROFIBUS
The Bus Terminal Controller BC3150 and are Bus Couplers with integrated PLC functionality, which have a fieldbus interface for PROFIBUS. They are intelligent slaves and can be used as distributed intelligence in the PROFIBUS system. When BC3100 one unit consists of the Controller, any number from 1 to 64 terminals and one end terminal.
Number of Terminals: 64 (255 with K-bus extension)Max. Number of bytes fieldbus 128 byte input and 128 byte outputMax. Number of bytes of the process image 512-byte input and output 512-byteDigital peripheral signals: 2,040 Inputs / OutputsAnalog peripheral signals; 128 Inputs / OutputsConfiguration option; via KS2000 or fieldbusTransfer rates automatic detection up. 12 MbpsBus interface 1 x D-Sub connector, 9-pinPower supply 24 V DC (-15% / + 20%)Input current: 320 mA max.Inrush 2.5 x continuous currentSupply current K-bus: 1000 mAPower contacts 24 V DC max. / 10 A max.Isolation 500 V (power contact / supply voltage)Weight about: 100 gOperating / storage temperatura: -25 ... + 60 ° C / -40 ... + 85 ° CRelative humidity: 95% without condensation
BC3150
Ficha de datos
- Modelo
- BC3150
- Marca
- BECKHOFF
