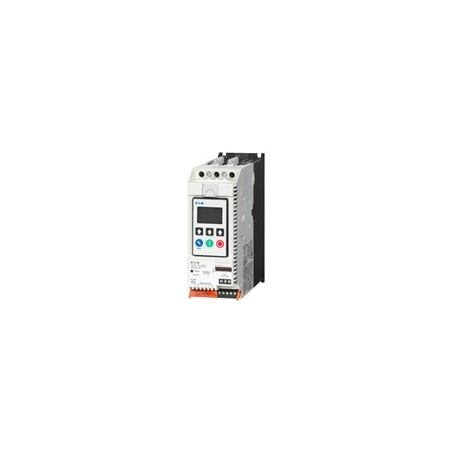

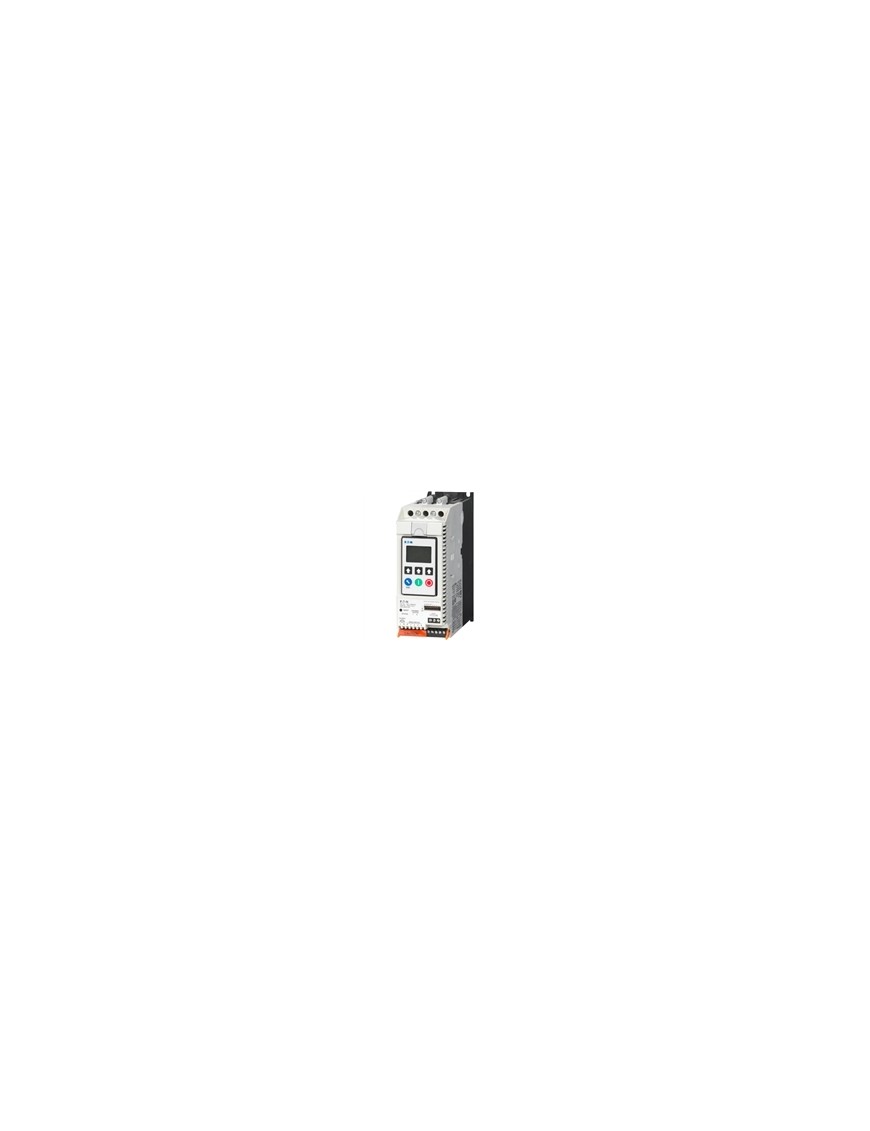

EATON S811+T24N3S

EATON S811+T24N3S

S811 SERIES COMMUNICATING SOFTSTARTER. CONTROL VOLTAGE: 24V DC. LOAD VOLTAGE: 200 - 575V AC, 240 AMP, NON-COMBINATION, 200 MM FRAME SIZE. 15-SECOND RAMP, 4 STARTS PER HOUR, 300% CURRENT LIMIT @ 40 DEGREES CELCIUS. HP RATINGS: 60 @ 200V, 75 @ 230V, 150 @ 460V. INCLUDES: INTERNAL SOLID-STATE OVERLOAD PROTECTION, RUN BYPASS MODE. ***MUST USE C-H POWER SUPPLY AND (2) LUG KITS***
