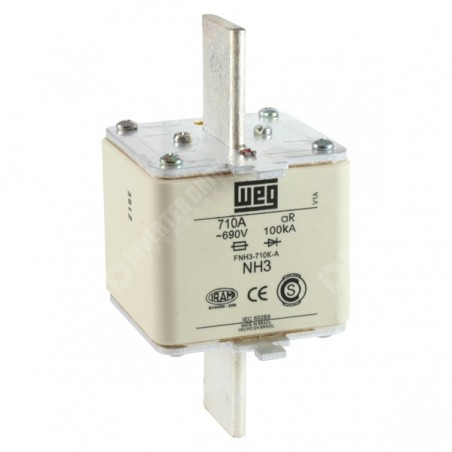

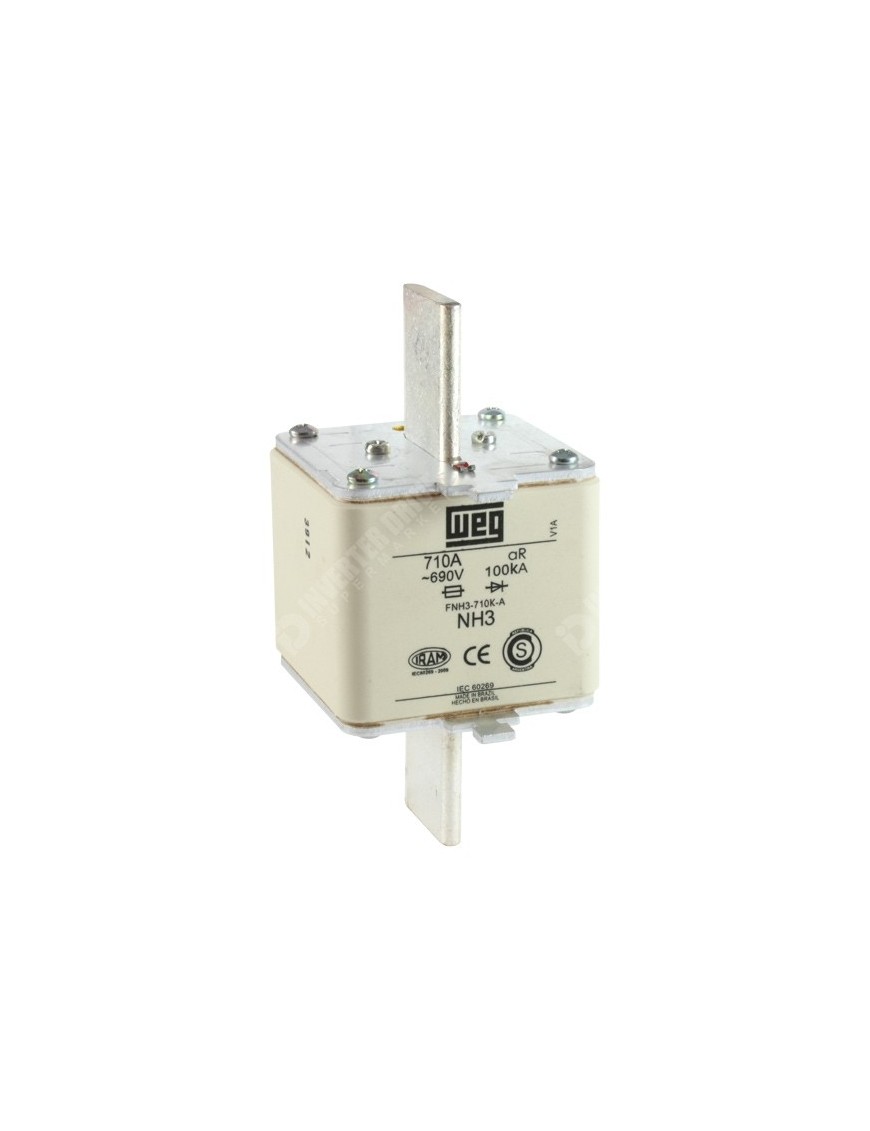

High Speed Fuse WEG NH3 710A FNH-Ar
High Speed Fuse WEG NH3 710A FNH-Ar
WEG high speed fuses are assembled in a high quality ceramic body, filled with impregnated quartz sand, with silver fusing element and silvered copper blade terminals.This assembly provides reduced I2t values and great electrical insulation, mechanical strength and termal shock resistance during the short circuit protection Description:710A High Speed thyristor protection AC Fuse.NH (Blade) type in DIN03 size.
525A continuous rating in enclosed off-load power circuit isolator.Use with 500A 590P and 591P DC Thyristor Drives.Ixt is 179.16kA²Sec at 400V.
Voltage rating is 690V AC maximum.Manufacturer is WEG.
Manufacturer Part Number is FNH3-710K-A.
NH3 710A FNH-Ar
Ficha de datos
- Modelo
- NH3 710A FNH-Ar
- Marca
- WEG
