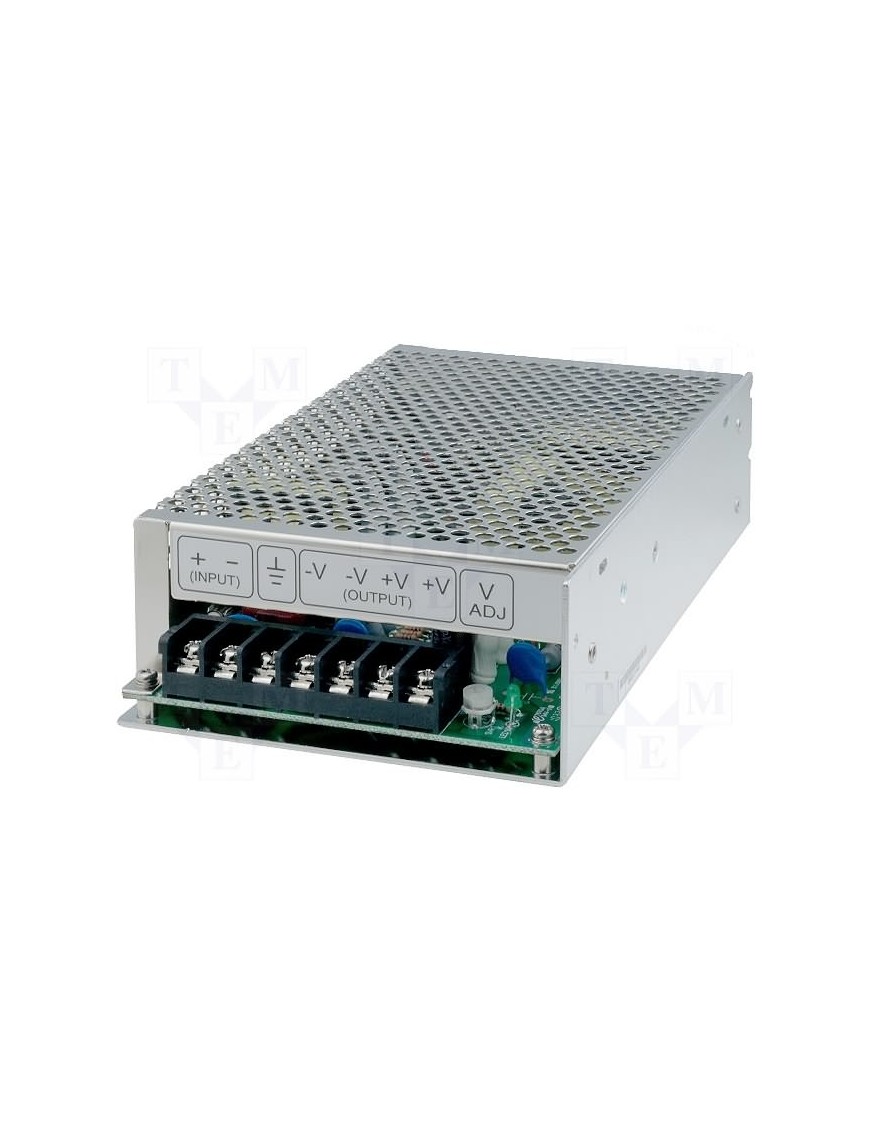

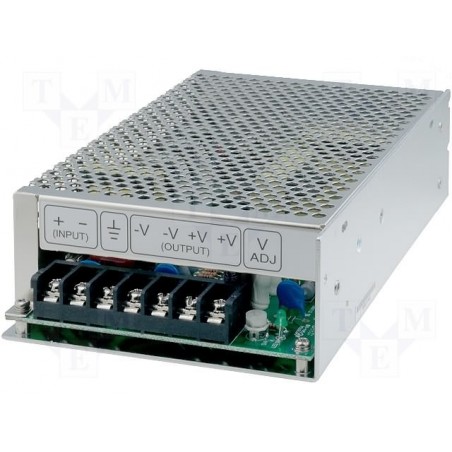

MEANWELL SD-150-B24
Write your review
0 $
Sin impuestos
150W Single Output DC-DC Converter
150W Single Output DC-DC Converter
This DC/DC converter is characterised by an extremely long service life, a screw terminal connection, reduced wiring requirements, a protective casing, easy assembly, automatic restart, as well as overload, overvoltage and short-circuit protection.
Specifications:Total Power: 150 WV(in) Min. (VDC): 19Nominal Input: 24 VDCV(in) Max. (VDC): 36Output 1: 24 VDCOutput 1: 6.3 AForm Factor: ChassisIsolation: 1500 VDC% typ. Efficiency: 77Safety: CE, LVDOperating Temp. Min.: -10 °COperating Temp. Max.: 60 °CLength: 7.83 inWidth: 4.33 inHeight: 1.97 in
SD-150-B24
Ficha de datos
- Modelo
- SD-150-B24
- Marca
- MEAN WELL
