SEMIKRON SKKT250-14E

0 $
Sin impuestos

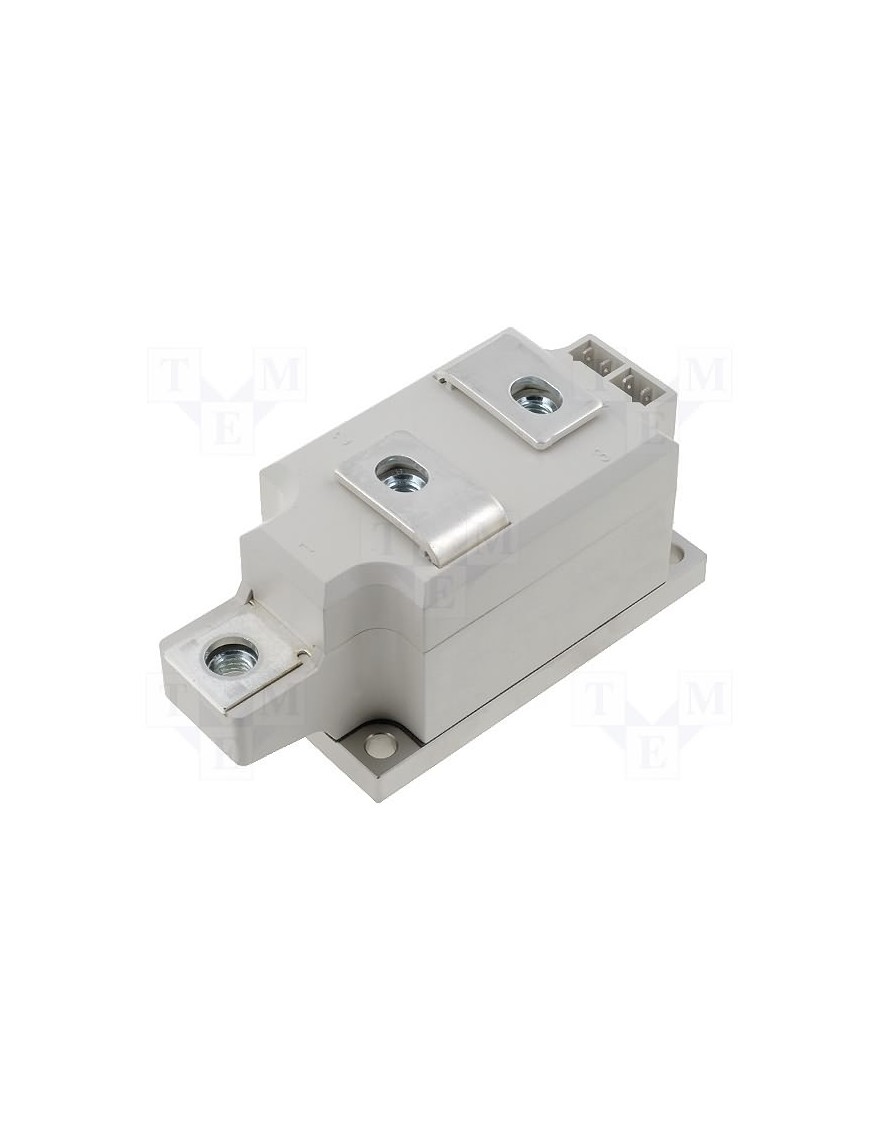

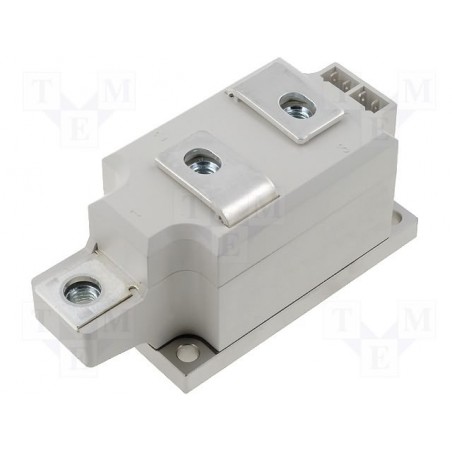

Thyristor Module

Cantidad
Entrega 10 días hábiles
equalizer Añadir a comparar cached
favorite_border Añadir a la lista de deseos cached

Thyristor Module

These SCR and diode modules come in industry standard packages offering seven different circuits. The modules can be used individually or as power control building blocks. Their high thermal efficiency assures long life and reliable performance. Seven different package sizes allow for a maximum output current of 1180 amps for standard diode modules and 360 amps for fast recovery versions. Blocking voltages are available as high as 2200 volts for standard diodes and 1700 volts for fast recovery modules.Features

Specifications
Item Category:           Power Modules
It (avg):           250 Amps
Vrrm:  1,400 Volts
Circuit:
SCR Doubler w/aux Cathode [show info]
Height (mm) Nominal:           52 MilliMeters
Width (mm) Nominal:            50 MilliMeters
Depth (mm) Nominal:            115 MilliMeters
Tq:       50 MicroSeconds
Igt:       200 MilliAmps
di/dt (Amps/MicroSec.):         250
dv/dt (Volts/MicroSec.):         1,000
Net Weight:  1 lb 5 oz




Ficha técnica

Obtenga el mejor precio



SKKT250-14E

Ficha de datos

Modelo
SKKT250-14E
Marca
SEMIKRON
