ABB 1SAJ520000R0101

0 $
Sin impuestos

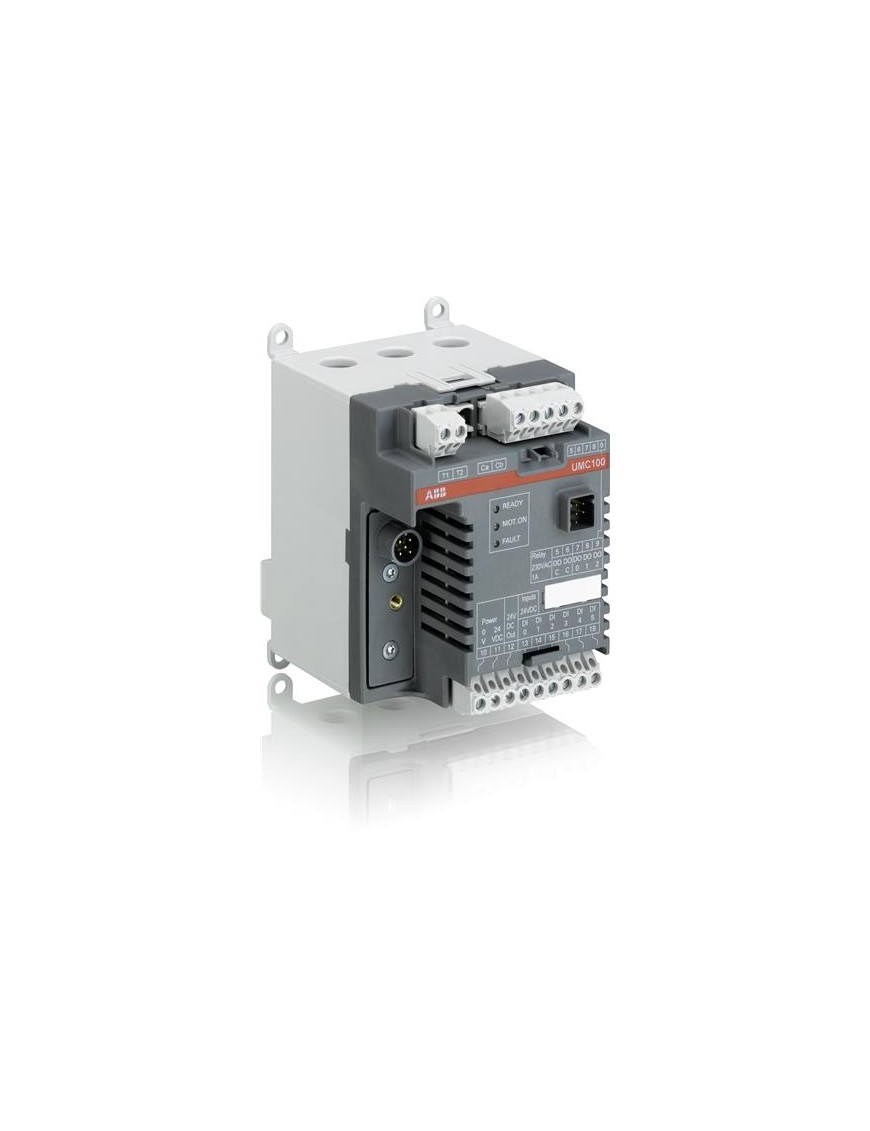

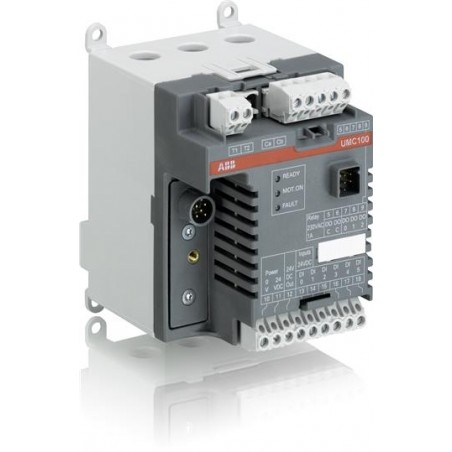

Universal Motor Controller

Cantidad
Entrega 10 días hábiles
equalizer Añadir a comparar cached
favorite_border Añadir a la lista de deseos cached

Universal Motor Controller

The Universal Motor Controller UMC100-FBP is a motor protection and control device for 3-phase motors. It provides electronic motor protection with through-the-hole current transformers, 3 relay outputs, one 24V DC output, 6 digital inputs for controlling and an optional LCD panel for parametrization and operation. Pre-programmed starter functions simplify the engineering process. The UMC100-FBP can be expanded with different IO modules.

Number of Digital Outputs DC 24V: 1
Number of Poles: 3
Pollution Degree: 3
Product Main Type: UMC100-FBP
Product Name: UMC100-FBP.0 Universal Motor Controller
Rated Control Supply Voltage (Us): 24 V DC
Rated Frequency (f): Main Circuit 50 Hz, Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp): Main Circuit 6 kV, Auxiliary Circuit 4 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Current AC-15 (Ie): (240V) 1.5 A
Rated Operational Current DC-13 (Ie): (24V) 1 A, (125V) 0.22 A, (250V) 0.11 A
Rated Operational Voltage: Main Circuit 690 V AC, Auxiliary Circuit 12 ... 250 V AC/DC
Setting Range: 0.24 ... 63 A



Ficha técnica

1SAJ520000R0101

Ficha de datos

Modelo
1SAJ520000R0101
Marca
ABB
