ABB 1SBN010040R1040
Write your review
0 $
Sin impuestos

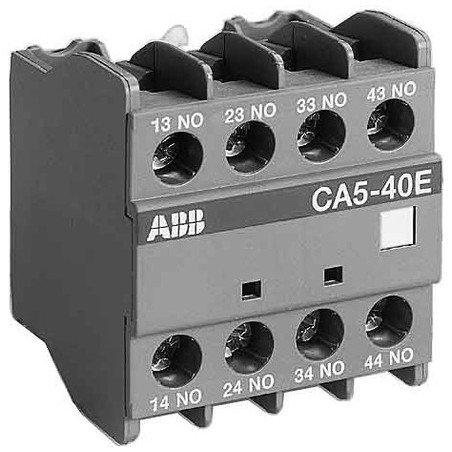

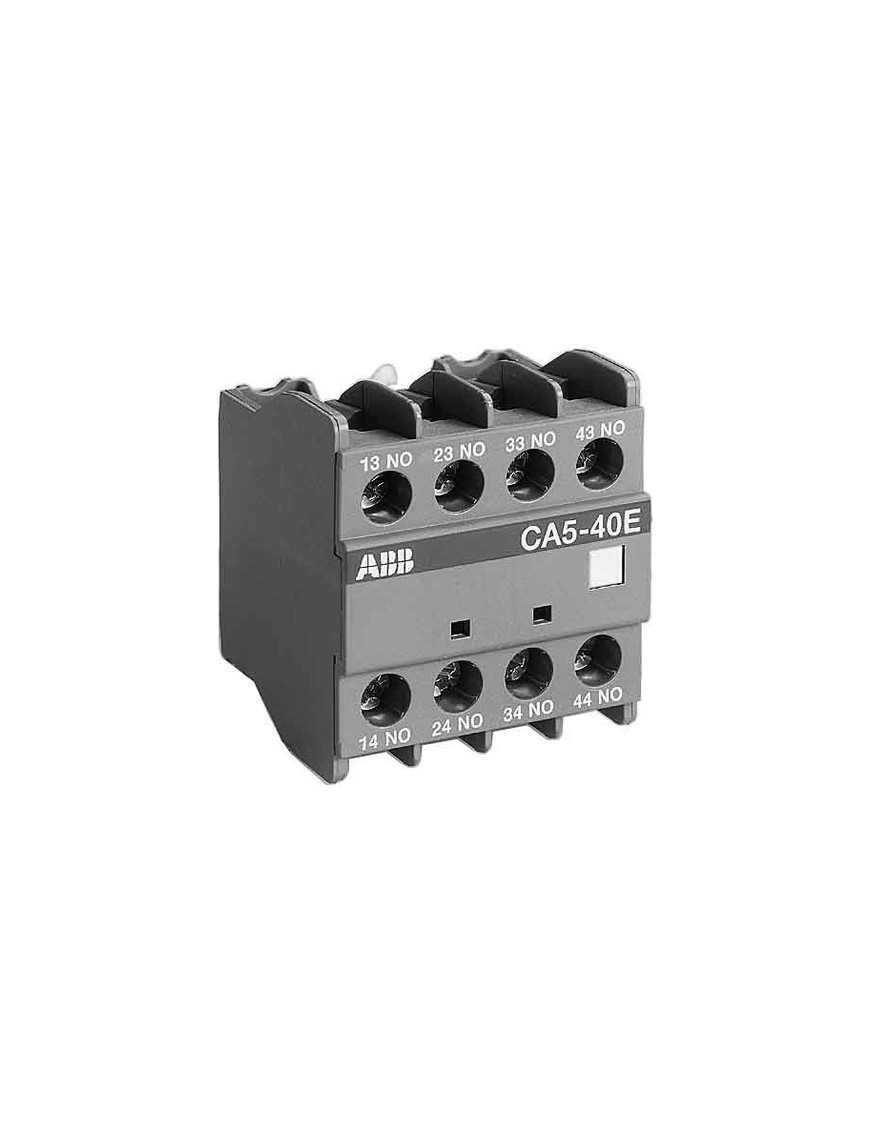

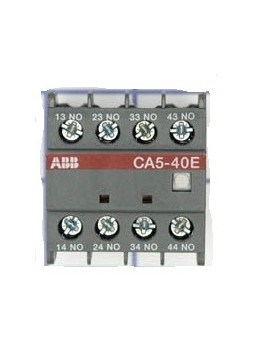

Auxiliary Contact Block
Auxiliary Contact Block
Additional InformationDegree of Protection: acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20IIT Publishing Status: Level 0 - Information enabledMaximum Electrical Switching Frequency: 1200 cycles per hourMaximum Mechanical Switching Frequency: 3600 cycles per hourMechanical Durability: A9 ... A75 10 million, A95 ... A110 3 millionMinimum switching capacity [V/mA]: A9 ... A75 17 / 5 volt per milliamp, A95 ... A110 24 / 50 volt per milliampMounting on Contactors: A 9...A 75Mounting Position: Front faceNumber of Auxiliary Contacts NO: 4Power Loss: Per Pole 0.1 WProduct Main Type: Accessories for Block ContactorsProduct Name: Auxiliary Contact BlockRated Breaking Capacity acc. to IEC 60947-5-1: 10 x Ie AC-15Rated Frequency (f): Supply Circuit 50 Hz, Supply Circuit 60 HzRated Insulation Voltage (Ui): acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 VRated Making Capacity acc. to IEC 60947-5-1: 10 x Ie AC-15Rated Operational Current AC-15 (Ie): (220 / 240V) 4 A, (24 / 127V) 6 A, (380 / 440V) 3 A, (500V) 2 A, (690V) 2 ARated Operational Current DC-13 (Ie): (125V) 0.55 / 69 A, (24V) 6 / 144 A, (250V) 0.3 / 75 A, (48V) 2.8 / 134 A, (72V) 1 / 72 ARated Operational Voltage: Main Circuit 24 V, Auxiliary Circuit 690 VRated Short-time Withstand Current (Icw): for 1.0s 140.0 ARemarks: 100Terminal Type: Screw Terminals
1SBN010040R1040
Ficha de datos
- Modelo
- 1SBN010040R1040
- Marca
- ABB
