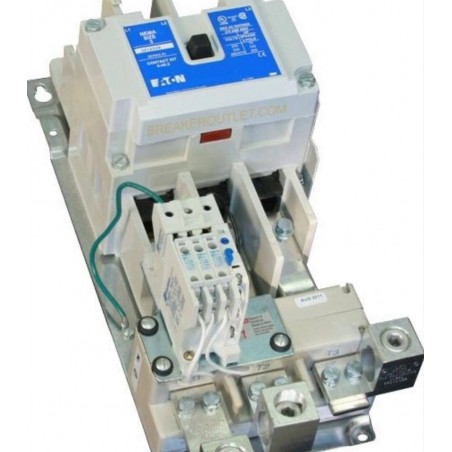

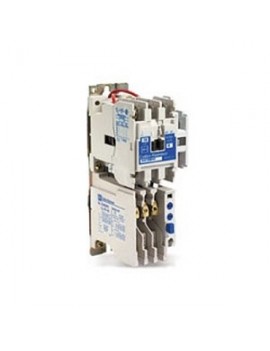

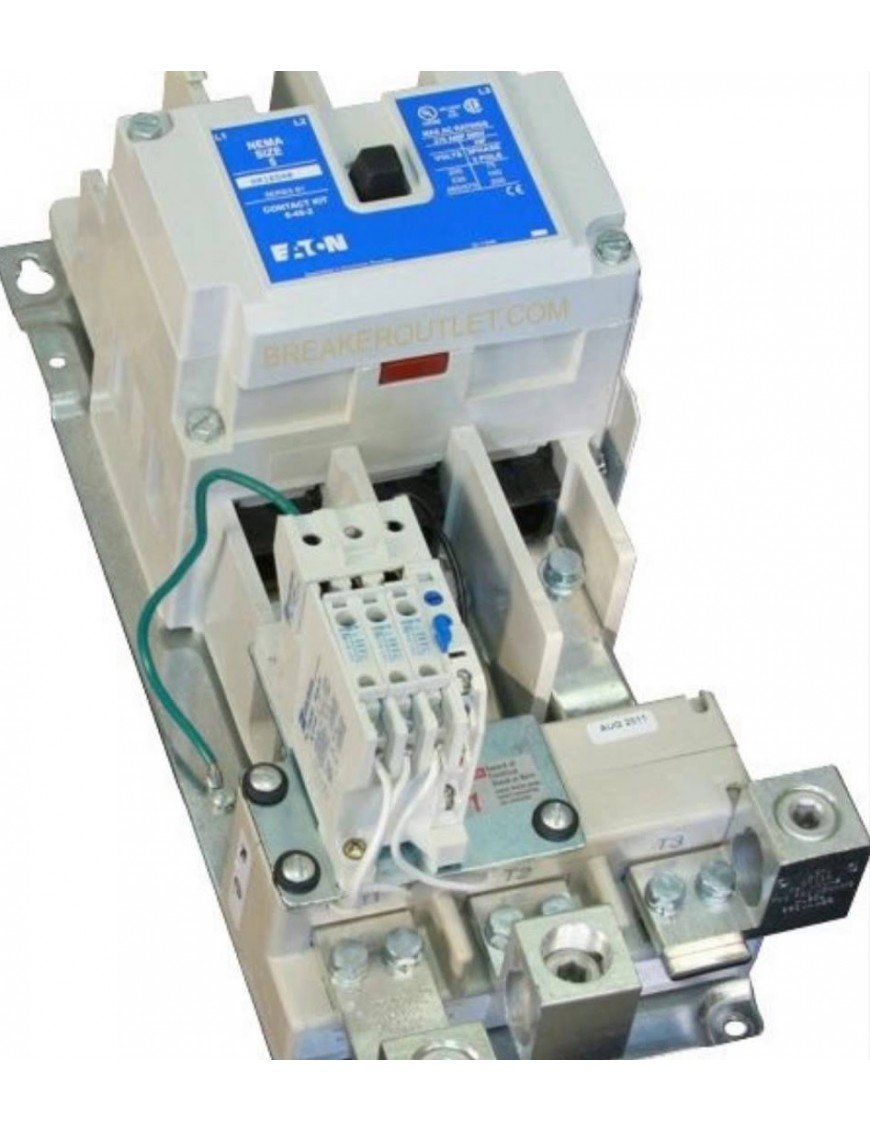

CUTLER HAMMER AN16SN0AB

0 $
Sin impuestos

Nema Full Voltage NonReversing Starter

Cantidad
Entrega 10 días hábiles
equalizer Añadir a comparar cached
favorite_border Añadir a la lista de deseos cached

Nema Full Voltage NonReversing Starter

The Eaton Cutler-Hammer Freedom Series contactors and starters are available from NEMA Size 00-8 and feature a compact space-saving design, state-of-the-art technology and the latest in high strength, impact and temperature resistant insulating materials. Freedom Series contactors and starters are available in a variety of control system voltages.
Specifications for Cutler Hammer, Div of Eaton Corp AN16SN0AB
Item Number:             AN16SN0AB
Brand:             Cutler Hammer, Div of Eaton Corp
Item Category:           Starters
Subcategory:              AC Non-Reversing NEMA
Series:            FREEDOM
  NEMA Frame Size:             5
  Coil Voltage:             120 VAC
  Poles:            3NO
  Continuous Ampere Rating:            270 Amps
  Max HP 460/480V 3PH:      200 Horsepower
  Service Limit Current:          311 Amps
  Max HP 230/240V 3PH:      100 Horsepower
  Auxiliary Contacts:  1NO
  Mounting:      Horizontal
  Termination:             Screw
  Overload Type:        Electronic
  Max HP 200/208V 3PH:      75 Horsepower
  Heater Series:          B
  Coil Type:     Magnetic
  Max HP 575/600V 3PH:      200 Horsepower
  Overload Series:      C306
  Picture No.:              CHGP_CTRL_AN161-3
  Comments:  Starter supplied with CT. Heater packs required, sold separately. Three heater packs per carton.
  H x W x D (in.):        9.4 x 12.4 x 21.5
  Net Weight:  34 lb
  Gross Weight:          34 lb



Ficha técnica



AN16SN0AB

Ficha de datos

Modelo
AN16SN0AB
Marca
CUTLER HAMMER
