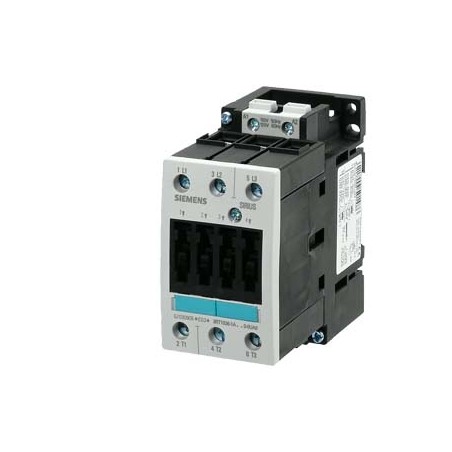

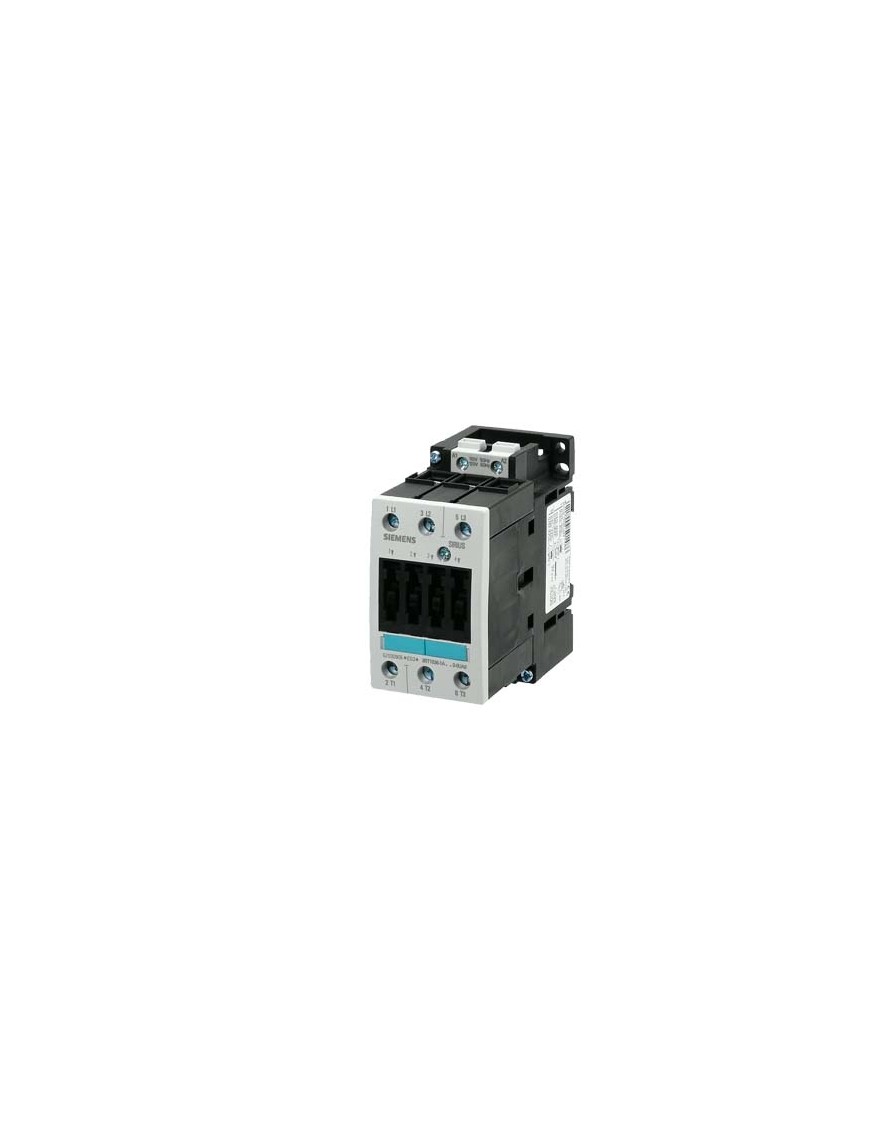

SIEMENS 3RT1035-1AB04

0 $
Sin impuestos

Magnet contactor, AC-switching 24 V

Magnet contactor, AC-switching 24 V

Rated control supply voltage Us at AC 50HZ: 24 - 24V
Rated control supply voltage Us at DC: 0 - 0V
Voltage type for actuating: AC
Rated operation current Ie at AC-1, 400 V: 60A
Rated operation current Ie at AC-3, 400 V: 40A
Rated operation power at AC-3, 400 V: 18.5kW
Rated operation current Ie at AC-4, 400 V: 35A
Rated operation power Ie at AC-4, 400 V: 18.5kW
Modular version: yes
Number of auxiliary contacts as normally open contact: 2
Number of auxiliary contacts as normally closed contact: 2
Connection type main current circuit: Screw connection
Number of normally closed contacts as main contact: 0
Number of main contacts as normally open contact: 3


Ficha técnica





3RT1035-1AB04

Ficha de datos

Modelo
3RT1035-1AB04
Marca
SIEMENS
