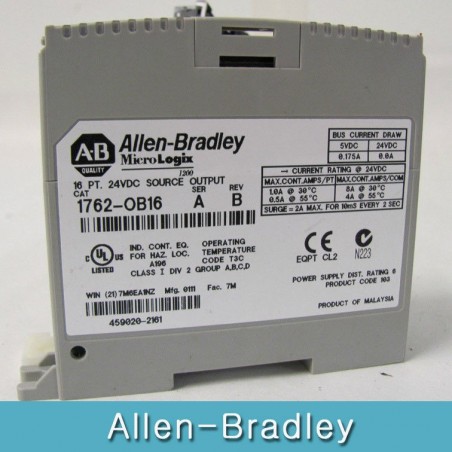

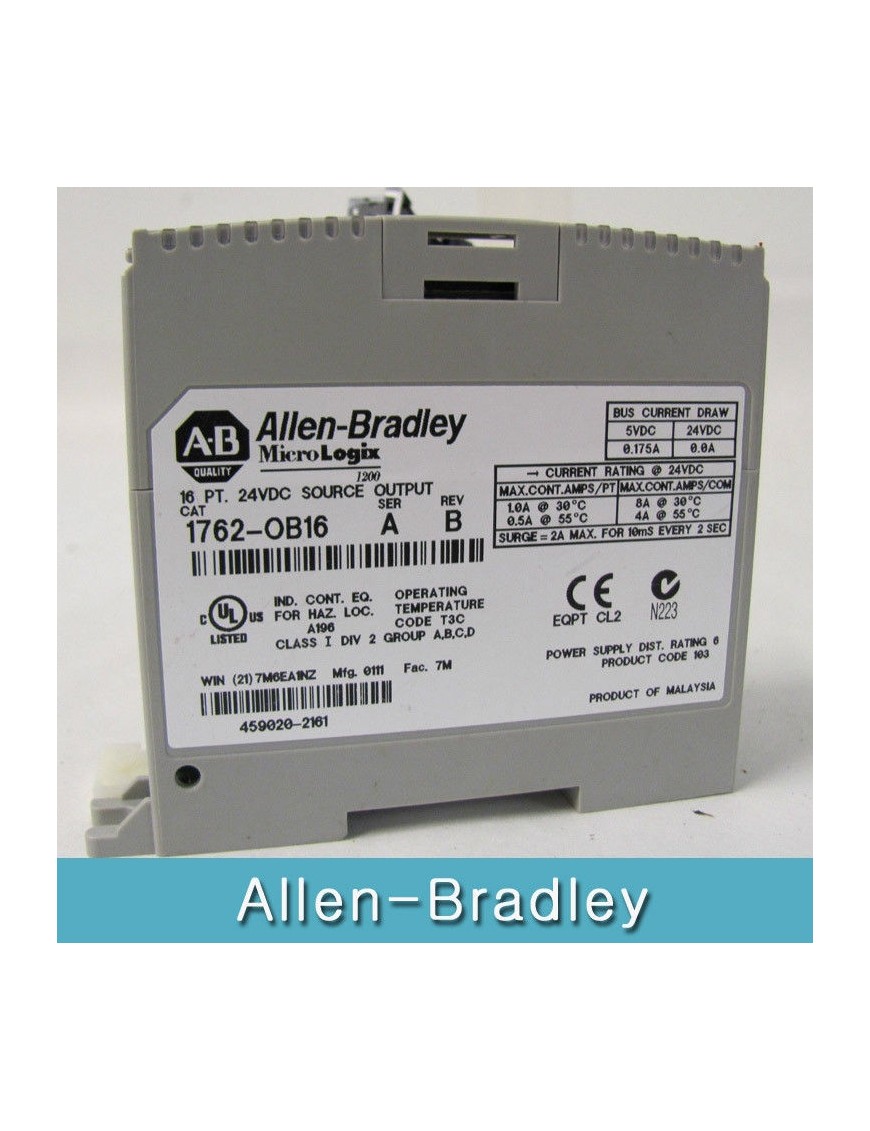

Allen Bradley 1762-OB16 MicroLogix

ALLEN BRADLEY 1762-OB16 MICROLOGIX.

Specifications General Specifications Specification Value Dimensions, HxWxD 90 x 40.4 x 87 mm (height including mounting tabs is 110 mm) 3.54 x 1.59 x 3.43 in. (height including mounting tabs is 4.33 in.) Approximate Shipping Weight (with carton) 235 g (0.52 lbs.) Temperature, nonoperating -40…85 °C (-40…185 °F) Temperature, operating 0…55 °C (32…131 °F) Humidity, operating 5…95% non-condensing Altitude, operating 2000 m (6561 ft) Vibration, operating 10…500 Hz, 5 g, 0.030 in. max. peak-to-peak, 2 hours per axis Shock Operating: 30 g panel mounted, 3 pulses per axis Non-Operating: 50 g panel mounted, 3 pulses per axis (40 g DIN Rail mounted) Hazardous Environment Class Class I, Division 2, Hazardous Location, Groups A, B, C, D ISA/ANSI 12.12.01 (C-UL under CSA C22.2 No. 213) Radiated and Conducted Emissions EN50081-2 Class A ESD Immunity (IEC1000-4-2) 4 kV contact, 8 kV air, 4 kV indirect Radiated Immunity (IEC1000-4-3) 10 V/m, 80…1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier Fast Transient Burst (IEC1000-4-4) 2 kV, 5 kHz Surge Immunity (IEC1000-4-5) 2 kV common mode, 1 kV differential mode Conducted Immunity (IEC1000-4-6) 10V, 0.15…80 MHz(1) (1) Conducted Immunity frequency range may be 150 kHz…30 MHz if the Radiated Immunity frequency range is 30…1000 MHz.
