DOLD & SOHNE BN5983.53
Write your review
0 $
Sin impuestos

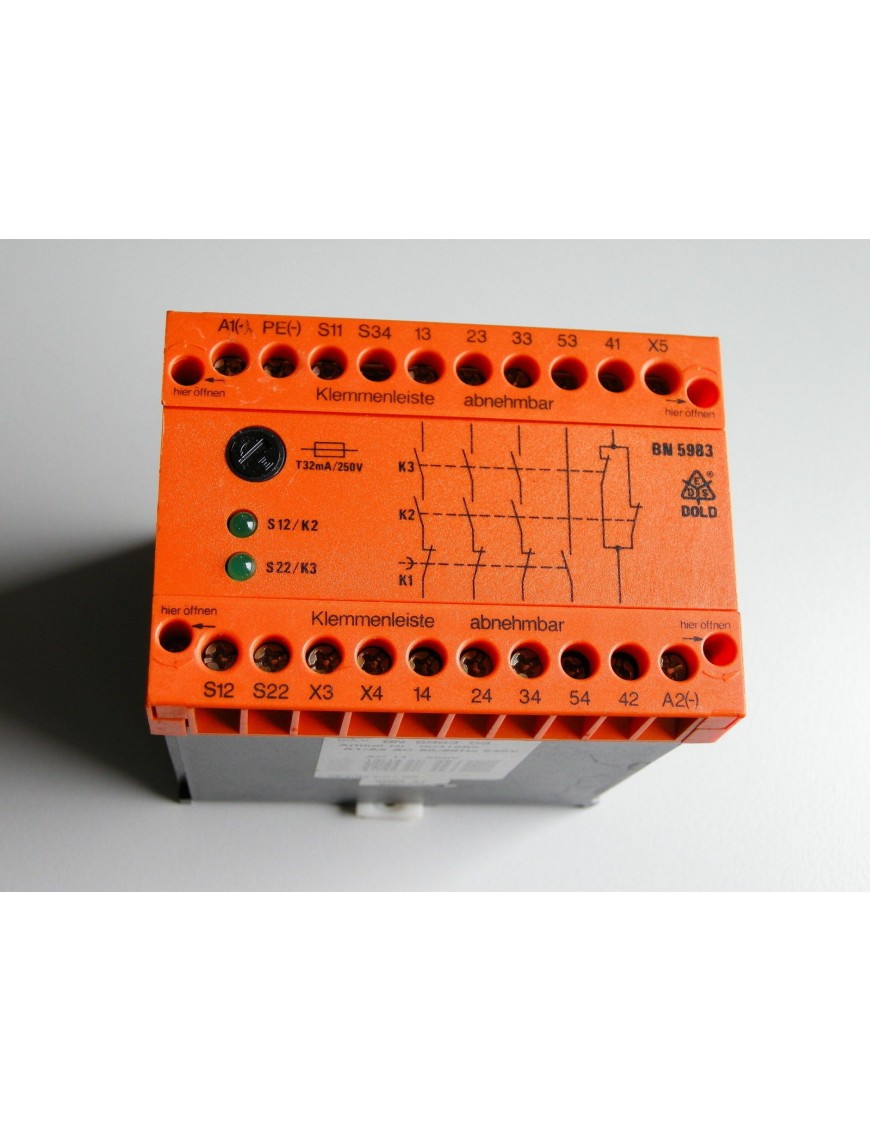

Emergency Stop Relay, Safety Relay Module
Emergency Stop Relay, Safety Relay Module
• According to EC Directive for machines 98/37/EG • According to IEC/EN 60204-1 • Safety category 4 according to EN 954-1 • Output: 3 NO, 1 NC contacts for AC 400 V • Optionally gold-plated contacts to switch small loads (input for PLC) • 1-channel or 2-channel connection • LED displays for channels 1 and 2 • Feedback circuit X3 - X4 for monitoring external contactors • Optionally with protective separation to IEC/EN 61 140, IEC/EN 69 947-1 • Removable terminal strips • Overvoltage and short circuit protection
• Width 100 mm
BN5983.53
Ficha de datos
- Modelo
- BN5983.53
- Marca
- DOLD & SOHNE
