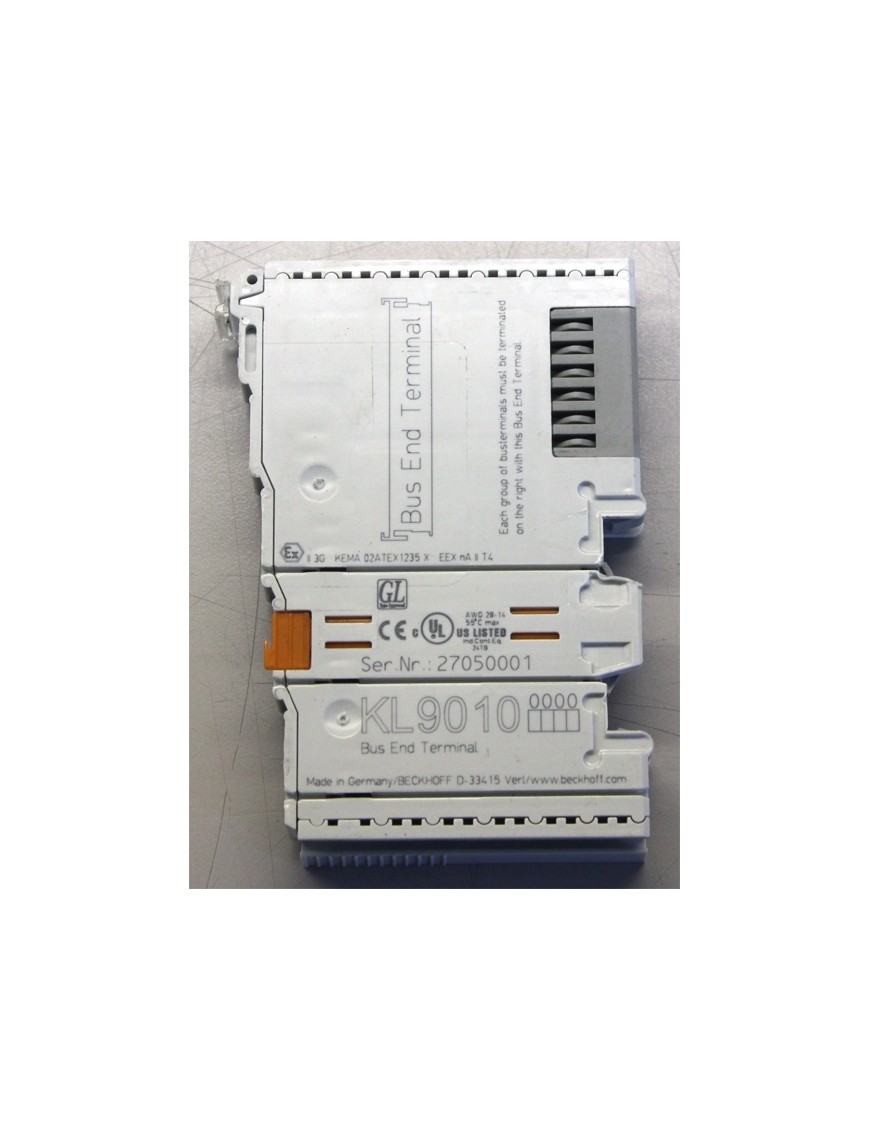

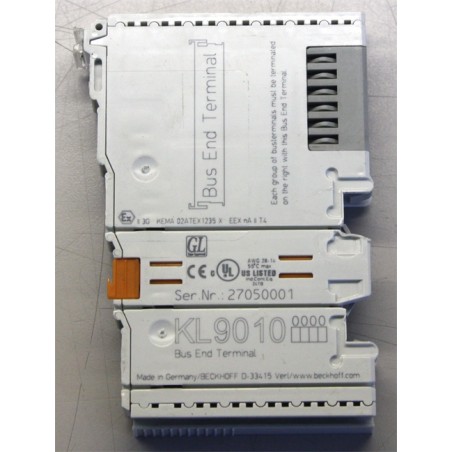

BECKHOFF KL9010
Write your review
0 $
Sin impuestos
K-Bus end terminal
K-Bus end terminal
The KL9010 K-Bus end terminal is necessary for data exchange between the Bus Coupler and the Bus Terminals.Each Bus Terminal block has to be terminated at the right hand end with a K-Bus end terminal.The K-Bus end terminal KL9010 does not have any other function or connection facility. Technical Data KL9010Current consumption from the K-Bus -Electrical isolation 500 Veff (K-Bus/signal voltage)Bit width in the process image -Configuration no address or configuration settingsWeight ca. 50 gPermissible ambient temperature range -0°C ... +55°C (during operation)-25°C ... +70°C (during storage)Permissible relative humidity 5% ... 95%, no condensationEMC resistance burst / ESD conforms to EN 61000-6-2 / EN 61000-6-4Vibration / shock resistance conforms to EN 60068-2-6 / EN 60068-2-27, EN 60068-2-29Protection class IP20Installation pos. VariableApproval CE
KL9010
Ficha de datos
- Modelo
- KL9010
- Marca
- BECKHOFF
