WAGO 750-333

0 $
Sin impuestos

PROFIBUS DP/V1 Fieldbus Coupler 12 Mbaud; digital and analog signals

Cantidad
Entrega 10 días hábiles
equalizer Añadir a comparar cached
favorite_border Añadir a la lista de deseos cached

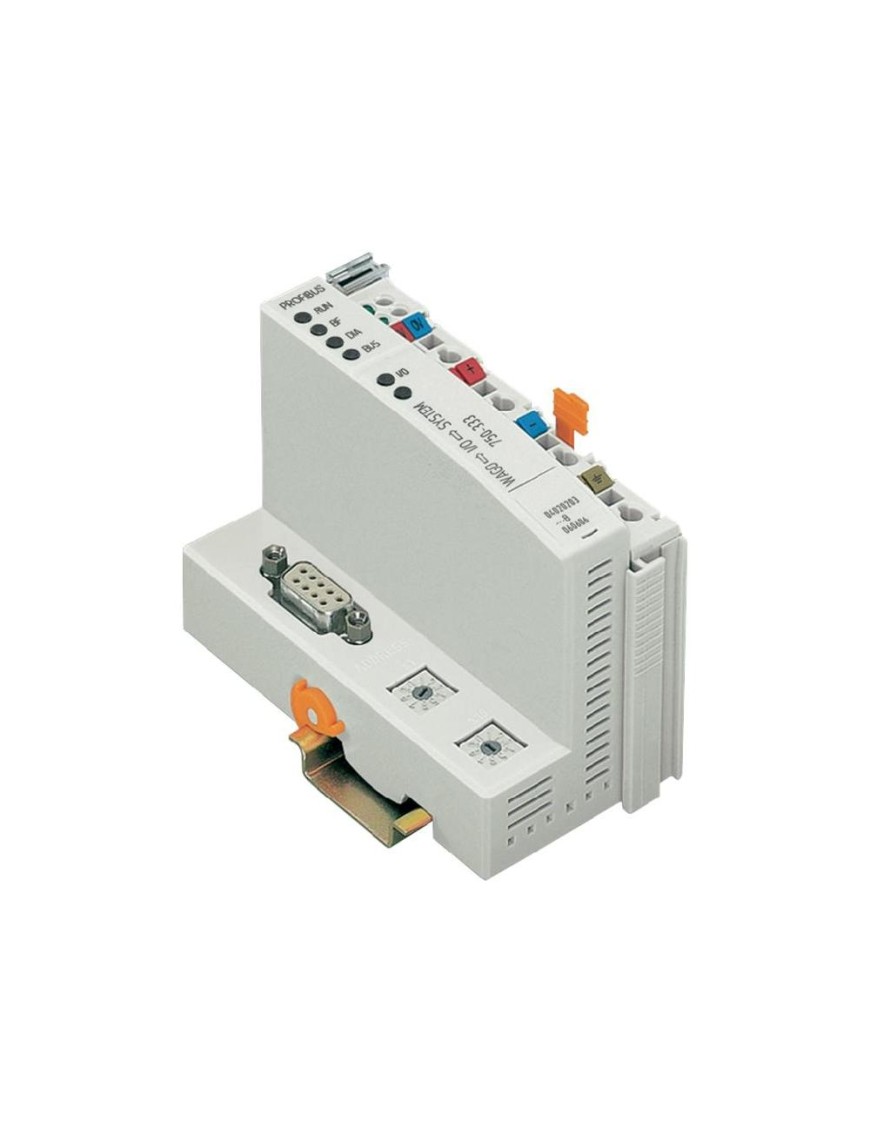

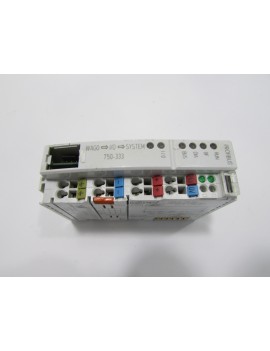

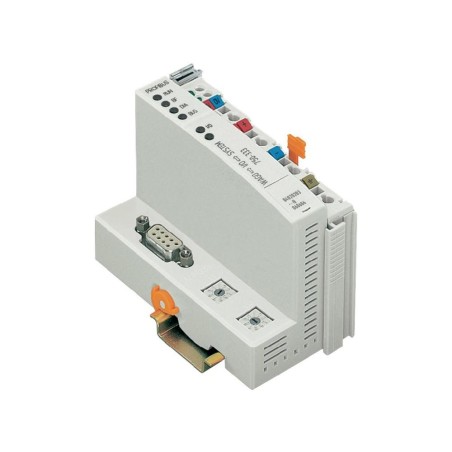

PROFIBUS DP/V1 Fieldbus Coupler 12 Mbaud; digital and analog signals


This buscoupler interfaces the I/O modules of the WAGO-I/O-SYSTEM to PROFIBUS DP.
When initializing, the buscoupler determines the module structure of the node,
to create the process image in PROFIBUS. In order to optimize addresses, the
I/O modules with a bit width smaller than 8 are grouped in one byte.
It is furthermore possible to deactive I/O modules and to modify the image of
the node according to the connected signals without having to modify the existing application.

The diagnosis concept is based on diagnostics according to the EN 50170 standard.

Product Information
Current Rating:
External Depth:               65mm
External Width:                51mm
Length:                100mm
SVHC:   No SVHC (16-Jun-2014)
Voltage Rating:                24VDC



Ficha técnica

750-333

Ficha de datos

Modelo
750-333
Marca
WAGO
