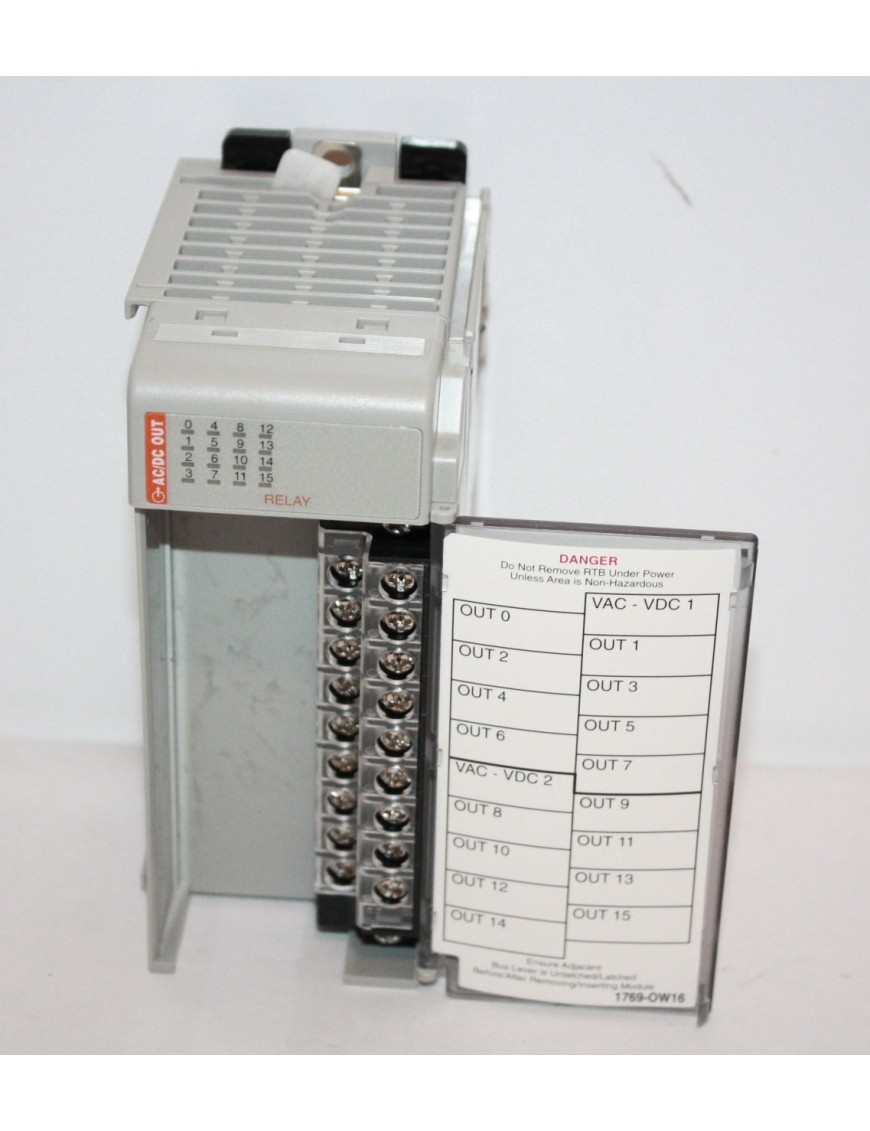

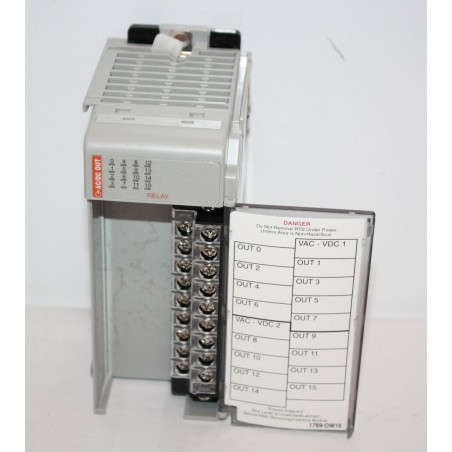

ALLEN BRADLEY 1769-OW16
Write your review
0 $
Sin impuestos
CompactLogix 16-Point AC/DC Relay Output Module
CompactLogix 16-Point AC/DC Relay Output Module
Logic Expansion Module, 16 point Relay Output Module that can control AC or DC loads; 2 isolated groups of 8 points each allowing to mix both AC and DC loads on one moduleThe 1769-OW16 is a 16 point relay output module that can control AC or DC loads.The module has 2 isolated groups of 8 points each. This allows you to mix both ACand DC loads on one module. Item Name: Digital AC/DC Relay Contact Output ModuleSlot Width: 1.5Number Of Channels: 16Output: 5 - 265 VAC, 5 - 125 VDC, On State Current: 10 MACurrent Rating: Drawn: 180 MA, 2.5 A Per Point, 20 A Per ModuleIsolation: 1836 VAC For 1 SEC Or 2596 VDC For 1 SEC, Output Point To BusEnclosure: None (Open-Style)Connection Cable: 22 - 14 AWG Solid, 22 - 16 AWG StrandedMounting: DIN Rail/Panel MountLength: 87 MMWidth: 35 MMHeight: 118 MMOperating Temperature: 0 - 60 DEG CEnvironmental Conditions: Humidity: 5 - 95 PCT Noncondensing, Vibration: 2 G, Shock: 30 GResponse Time: Delay:10 MS(ON), 10 MS(OFF)Power Dissipation: 4.75 WContact Rating: Make: 0.22 A At 125 VDC, 28 VA, 7.5 A At 240 VAC, 1800 VA; Break: 0.75 A At 240 VAC, 180 VA
1769-OW16
Ficha de datos
- Modelo
- 1769-OW16
- Marca
- ALLEN BRADLEY
