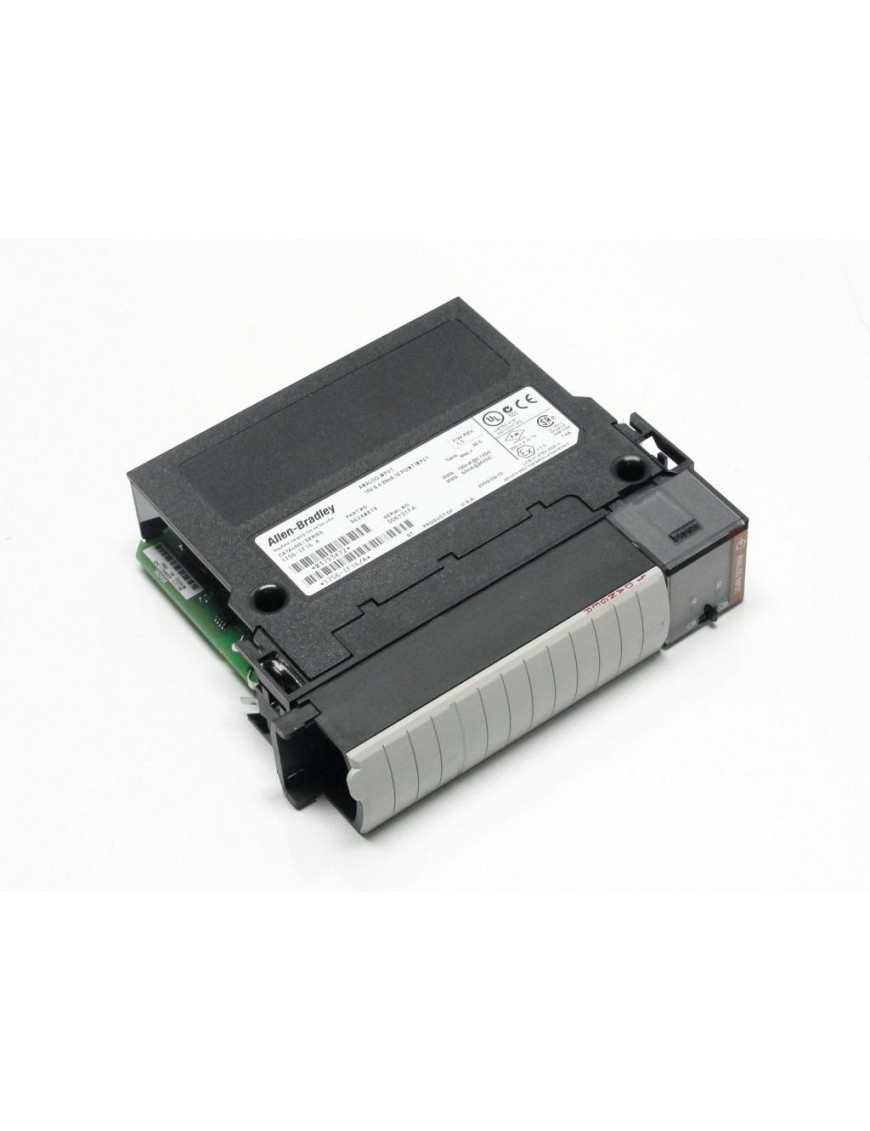

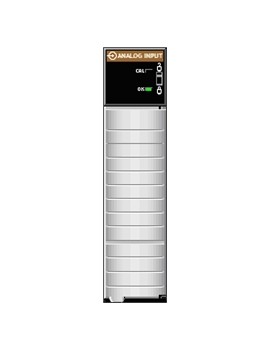

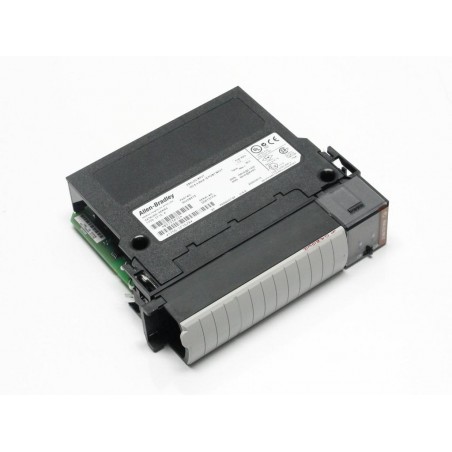

ALLEN BRADLEY 1756-IF16

Write your review

0 $

Sin impuestos

Voltage/Current Input Module

Cantidad

Entrega 10 días hábiles

Añadir a comparar

Añadir a la lista de deseos

Voltage/Current Input Module

SPECIFICATIONS

Enclosure: None (Open-Style)

Slot Width: 1

Environmental Conditions: Humidity: 5 - 95 PCT Noncondensing, Vibration: 2 G, Shock: 30 G

Operating Temperature: 0 - 60 DEG C

Display: Module Health, In Calibration Mode

Power Dissipation: Voltage: 2.3 W, Current: 3.9 W

Input: 0 - 10.25 V, Plus Or Minus 10.25 V, 0 - 5.125 V, 0 - 20.5 MA

Sub Brand: ControlLogix®

Accuracy: Voltage: Better Than 0.05 PCT Range, Current: Better Than 0.15 PCT Range

Resolution: 320 MICRO-V/Count At Plus/Minus 10.25 V, 160 MICRO-V/Count At 0 - 10.25 V, 80 MICRO-V/Count At 0 - 5.125 V, 0.32 MICRO-V/Count At 0 - 200 MA

Response Time: Settling: Less Than 80 MS To 5 PCT Of Full Scale; Input Scan: 16 - 488 MS(16 Point Single Ended), 8 - 244 MS(8 Point Differential), 5 - 122 MS(4 Point Differential)

Current Rating: Drawn: 65 MA At 24 V

Item Name: Voltage/Current Analog Input Module

Isolation: 250 V Continuous, Inputs To Backplane

Number Of Channels: 16 (Single Ended, 8 Differential Or 4 Differential)

Rejection Ratio: Normal Mode Noise: Greater Than 80 DB, Common Mode Noise: Greater Than 100 DB

Mounting: Chassis
